Armadio per batterie solari Gobel PowerVault 32 32,15 kWh 51,2 V 628 Ah - Sistema di accumulo di energia LiFePO4 ad alta capacità, scalabile fino a 2 MWh per impianti solari C&I e off-grid
PowerHarp 32 integra 32.15kWh di accumulo LiFePO4 in un armadio da pavimento per progetti residenziali e commerciali leggeri.
Gestione della batteria
Il BMS da 300A supervisiona i parametri elettrici e termici durante la carica e la scarica.
Struttura accessibile
Il formato a pavimento riunisce le parti principali in una soluzione ordinata e accessibile per la manutenzione.
Integrazione del sistema
La piattaforma 51.2V supporta il monitoraggio e la progettazione di un sistema con inverter compatibile.
Progettata per esigenze maggiori
Una soluzione per abitazioni grandi, sistemi solari e piccoli progetti commerciali che richiedono più capacità.
Gobel PowerHarp 32 | Sistema di Accumulo Energetico LiFePO4 32,15kWh 51.2V 628Ah

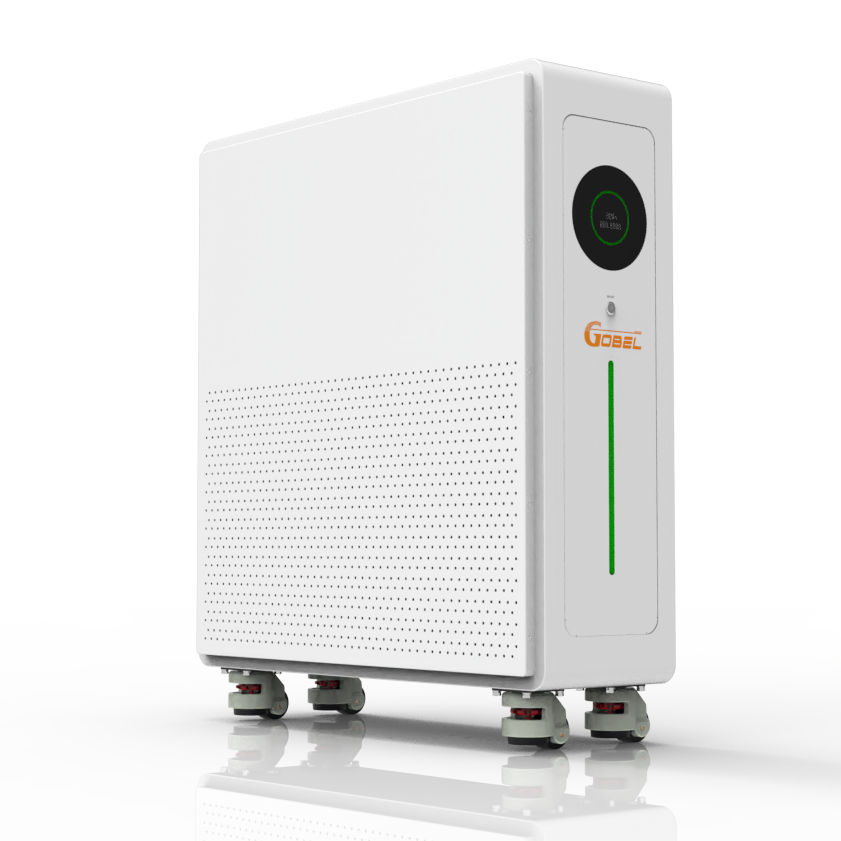

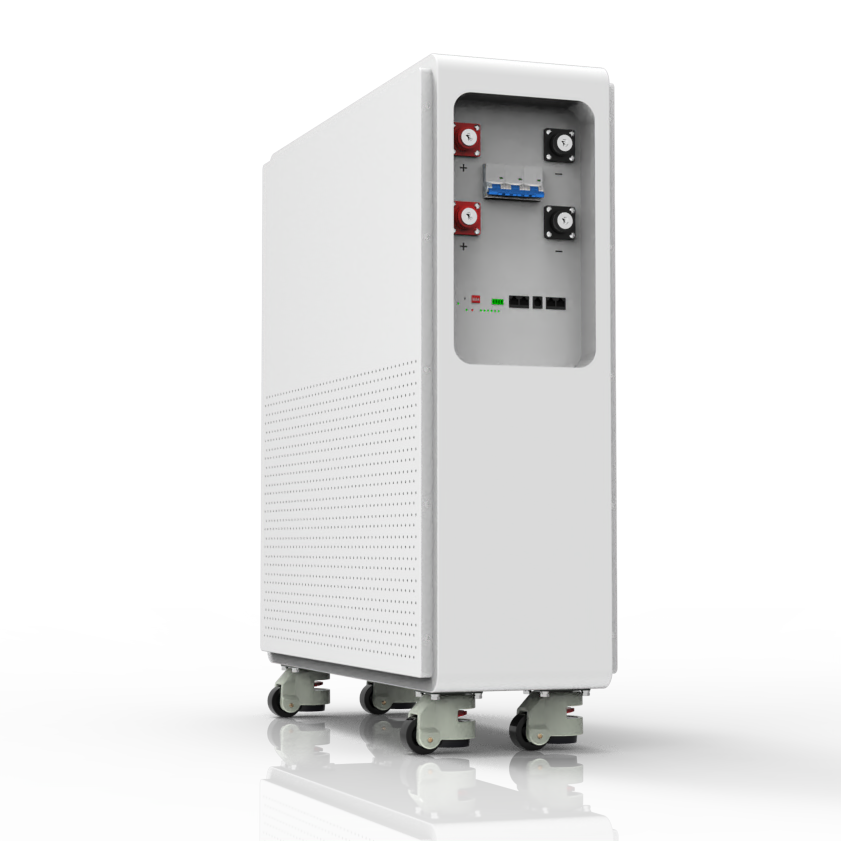

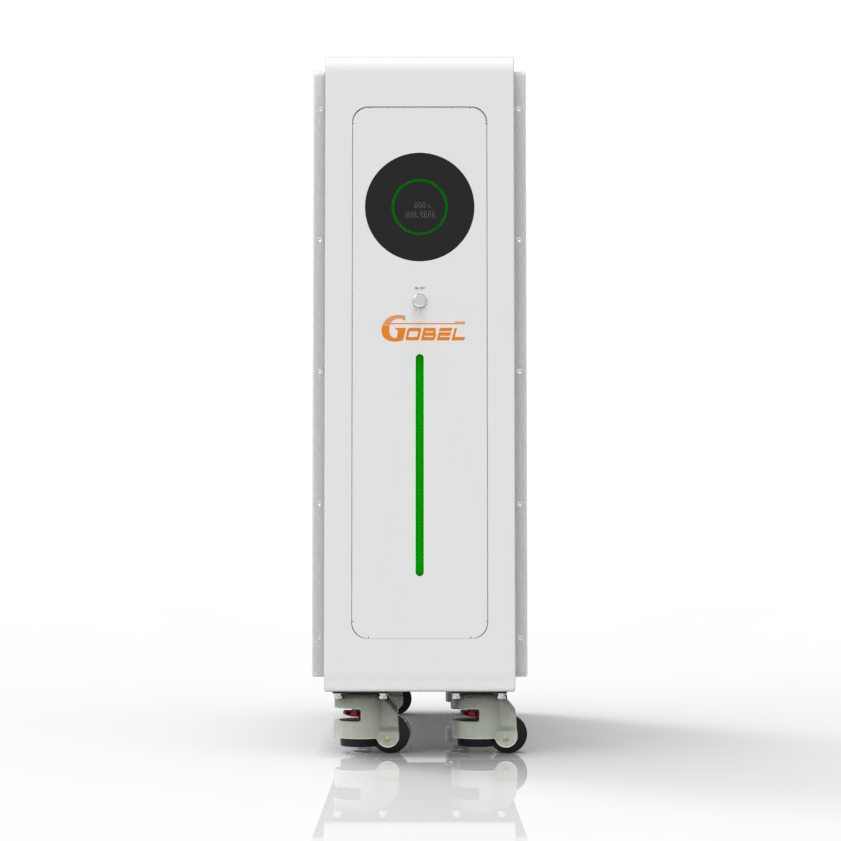

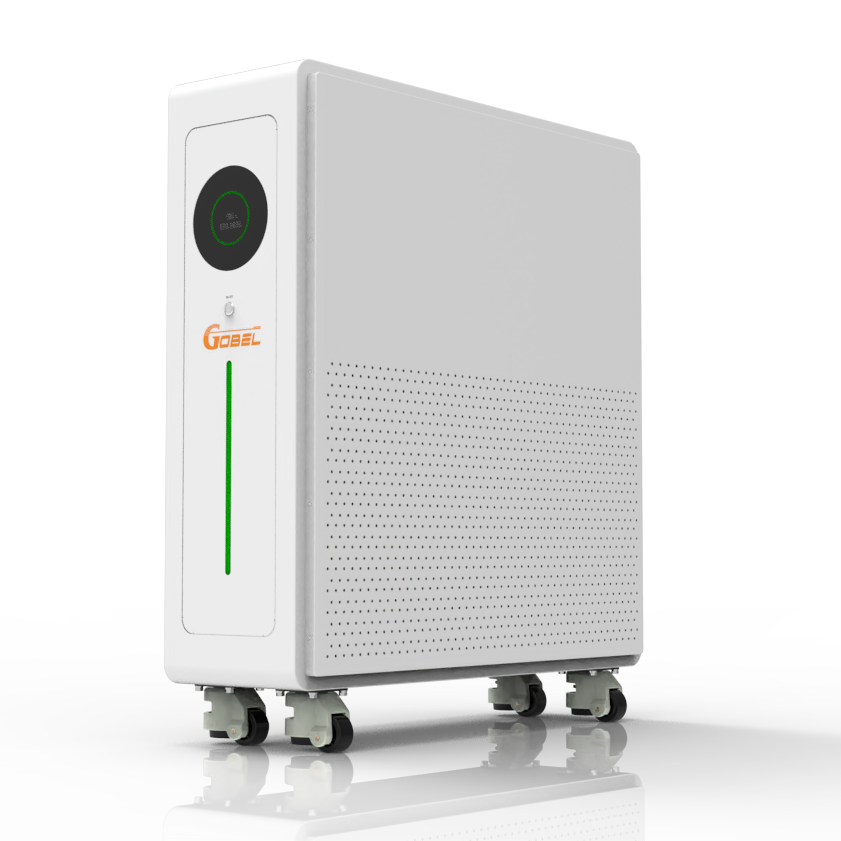

Il Gobel PowerHarp 32 (GP-PB5-32K) è un armadio per batterie LiFePO4 da pavimento per impieghi gravosi e ad alta capacità (32,15kWh), progettato per l'indipendenza energetica residenziale su larga scala e applicazioni commerciali e industriali (C&I) in tutta Europa.
Perché Scegliere Gobel PowerHarp 32?
Densità di Capacità Ultra-Elevata: La configurazione integrata 51,2V 628Ah fornisce 32,15kWh di energia in un unico involucro compatto, riducendo significativamente l'ingombro di installazione e i costi di manodopera.

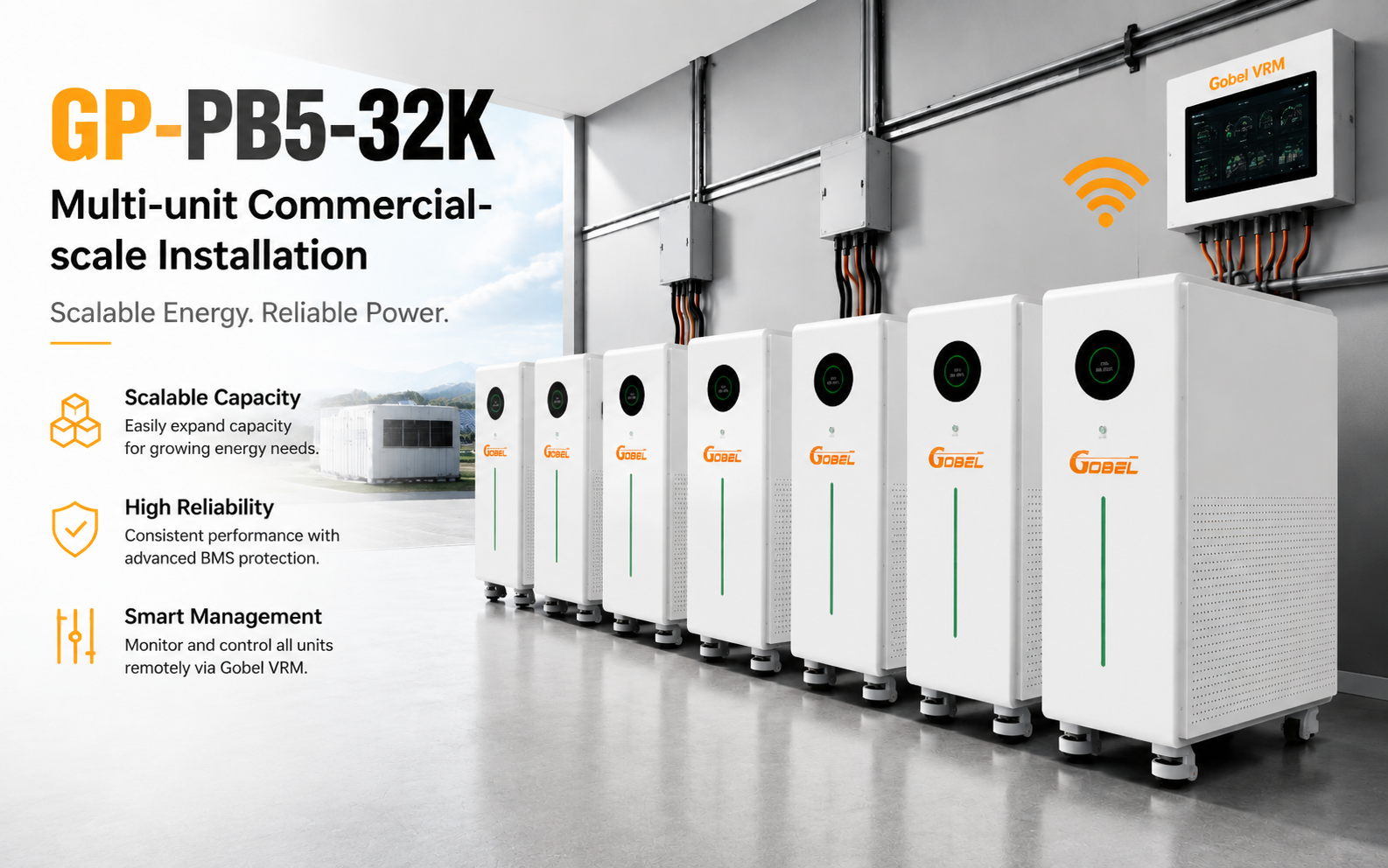

Estrema Scalabilità in Parallelo: Supporta fino a 63 unità in parallelo, consentendo un'espansione di potenza senza interruzioni da 32kWh a oltre 2MWh per microreti commerciali.
Abbinamento Protocollo Inverter Tier-1: Comunicazione BMS CAN/RS485 pre-programmata compatibile con Victron Energy, Deye, Growatt, Luxpower, Solis e altri inverter ibridi leader.
Telemetria Cloud Wi-Fi Gobel VRM: Modulo wireless integrato per telemetria remota in tempo reale, diagnostica del bilanciamento della tensione e gestione della flotta da remoto via mobile/web.
Display Touch LCD Intelligente: Monitoraggio dello stato in tempo reale tra cui SOC, tensione di sistema, corrente, temperatura delle celle e registri degli allarmi direttamente sull'armadio.
Specifiche Tecniche
Parametro
Specifiche
Modello
GP-PB5-32K
Energia Nominale
32,15 kWh
Tensione e Capacità Nominale
51,2V / 628Ah
Chimica delle Celle della Batteria
100% Nuove Grado-A LiFePO4 (LFP)
Capacità in Parallelo
Fino a 63 unità in connessione parallela
Interfaccia di Comunicazione
CAN / RS485 / Wi-Fi (Gobel VRM Cloud)
Compatibilità Inverter
Victron, Deye, Growatt, Luxpower, Solis, GoodWe, Mustang, ecc.
Certificazioni
Rapporti CE, UN38.3, MSDS, IEC62619 disponibili
Servizio di Fornitura e Ingrosso B2B in Europa
• Stock in Magazzino UE: Disponibile per la spedizione locale per ridurre i tempi di consegna.
• Spedizione DDP: Consegna porta a porta senza problemi con sdoganamento e IVA locale completamente coperti.
• Supporto Distributori: Branding personalizzato, sconti quantità e supporto tecnico prioritario per installatori certificati.
How many PowerThor 5000 batteries do I need for a solar backup system?
Each PowerThor 5000 module provides 5.12kWh nominal energy, so the required quantity depends on essential-load kWh, desired backup time and reserve for conversion losses and operating limits. Also verify the inverter battery-current limit and system protection; the product supports 16 parallel units as standard and up to 32 with supported firmware.
How does PowerThor 5000 communicate with a solar inverter?
PowerThor 5000 uses a JK-Inverter BMS with CAN configured for Victron Energy by default and RS485 configured for Growatt by default, plus Bluetooth for local commissioning. Always confirm the exact inverter model, cable pinout, protocol selection and firmware because a matching connector alone does not establish compatibility.
How much power can the PowerHarp 32 battery deliver?
PowerHarp 32 provides 32.15kWh nominal energy and 15.36kW continuous output, with a 20.5kW peak rating under the specified current and duration limits. Its 51.2V 628Ah architecture uses a 300A BMS, so cable sizing, isolation and fault protection must be engineered for the full system current.
Is PowerHarp 32 suitable for a large home or small business?
PowerHarp 32 can suit large residential, workshop and light-commercial energy profiles when 32.15kWh of storage and 15.36kW continuous output match the measured load. Use interval consumption data where possible and have a qualified designer plan the inverter, protection, conductors and any parallel battery bank.
Can PowerHarp 16 be used for whole-house battery backup?
PowerHarp 16 is designed for residential backup and provides 16.07kWh nominal energy, 7.68kW continuous output and 10.2kW peak output under the stated conditions. Whether it can support the entire home depends on the selected circuits, starting loads, inverter, transfer equipment and required backup duration.
What is the difference between PowerHarp 16 and PowerFable 16?
Both provide approximately 16.07kWh from a 51.2V 314Ah LiFePO4 pack, but their installation formats differ. PowerHarp 16 is an integrated floor-standing indoor cabinet, while PowerFable 16 uses a serviceable 19-inch 6U rack format that can be installed only in its approved rack, stacking or caster configuration.
