Gobel PowerHarp 32 32.15kWh Home Energy Storage Battery

Battery Module:
GP-PB5-32K
Battery Cells:
314Ah Prismatic LiFePO4 Cells
BMS:
300A BMS
Operating Voltage:
40 ~ 58.4 V
Size:
910 * 764 * 315 mm
Weight:
280kg
Warranty:
5-10 Years
EU & US Local Warehouses
Fast DDP delivery in 3-7 days
Up to 10-Year Warranty
Industry-leading coverage, 6000+ cycles
Certified Safety
CE / UN38.3 / MSDS certified
Product Introduction

32kWh high-capacity energy storage

Whole-building energy.
Designed as one refined system.

PowerHarp 32 brings 32.15kWh of LiFePO4 storage and 15.36kW of continuous output into a floor-standing cabinet for larger homes and light-commercial projects.

32.15kWhNominal energy
15.36kWContinuous output
300ASmart BMS
8,000+Cycle life

High-capacity platform

Serious storage without moving to high voltage.

The 51.2V 628Ah architecture delivers substantial energy capacity on a familiar 48V-class platform. The floor-standing enclosure keeps the installation visually clean while concentrating more storage into one serviceable unit.

  • 32.15kWh nominal energy
  • 51.2V low-voltage architecture
  • Floor-standing cabinet with integrated mobility

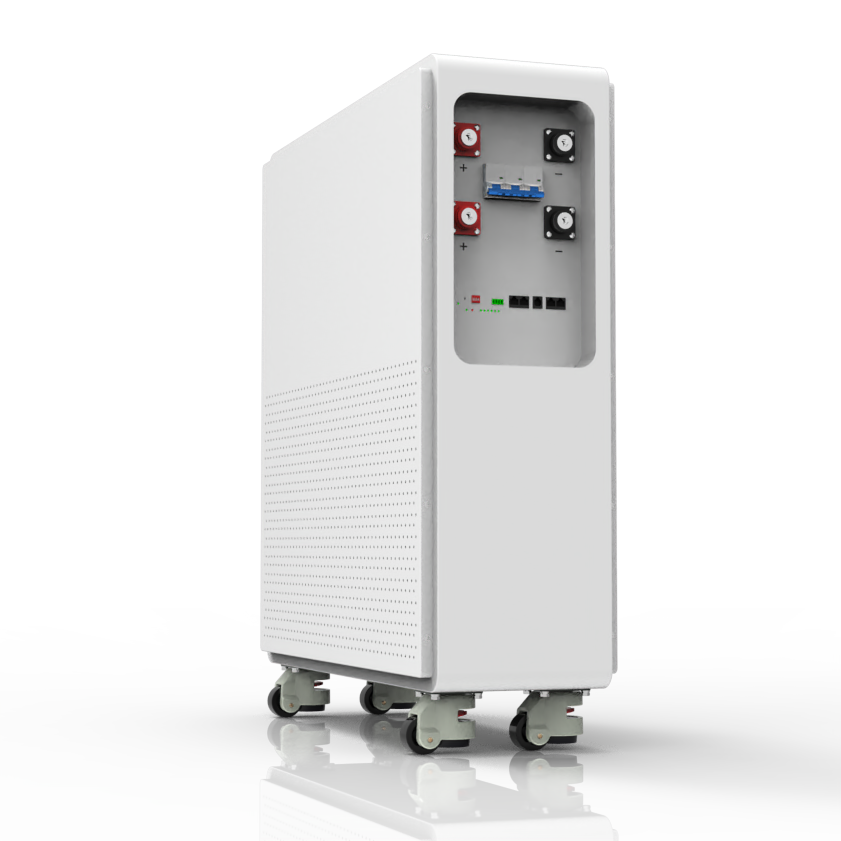

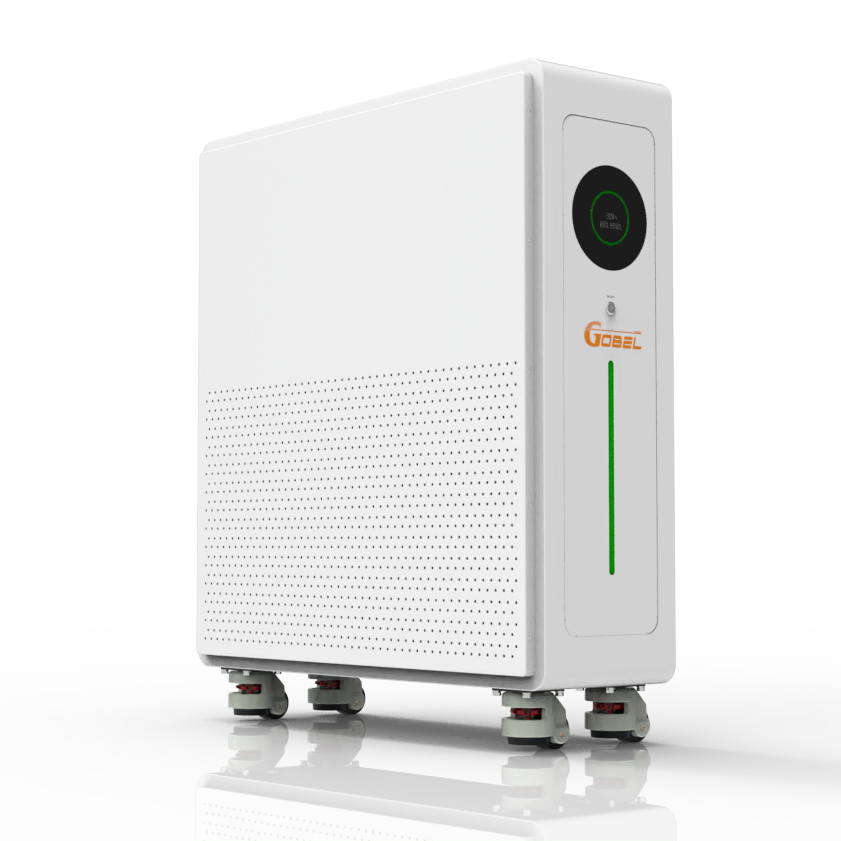

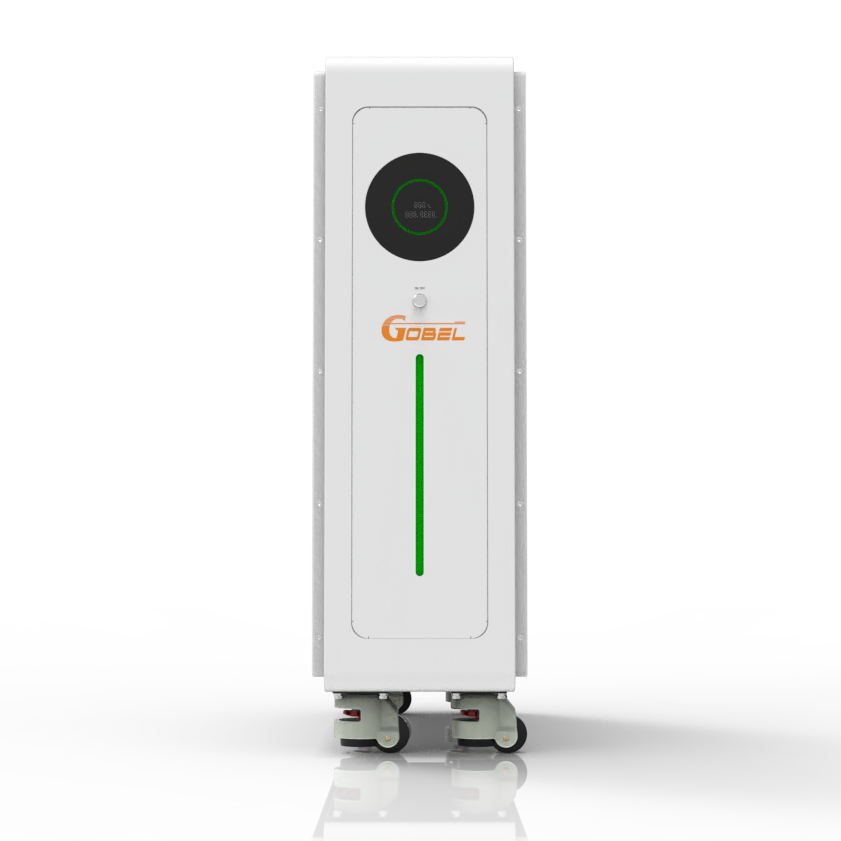

PowerHarp 32 floor-standing 32.15kWh LiFePO4 battery
A compact high-capacity cabinet for larger energy requirements.

300A battery management

Protection designed for higher-power projects.

A 300A BMS supervises voltage, current and temperature while coordinating charge and discharge limits. Multi-level protection helps the battery respond to overvoltage, undervoltage, overcurrent, temperature and short-circuit conditions.

  • 300A continuous BMS platform
  • 15.36kW continuous charge and discharge capability
  • Real-time monitoring of critical pack conditions
PowerHarp 32 battery with PC-16S300A BMS protection overview
High-current control and protection for demanding storage systems.

Long-service chemistry

Built for repeated solar cycling.

Prismatic LiFePO4 cells give PowerHarp 32 the stable chemistry and cycle capability expected from a modern stationary battery. The pack is rated for 8,000 or more cycles to the stated end-of-life condition.

  • 314Ah prismatic LiFePO4 cells
  • 8,000+ rated cycles to 70% end-of-life capacity
  • Passive thermal design with no routine fan maintenance
PowerHarp 32 cycle life and capacity retention information graphic
Cycle-life performance supports frequent solar self-consumption use.

Gobel VRM

Monitor the energy system from anywhere.

Connected monitoring gives owners and installers a clearer view of state of charge, cell data and operating status. Remote visibility supports faster diagnostics and better-informed system operation.

  • Wi-Fi connected monitoring
  • State-of-charge and battery status visibility
  • Remote alerts and recorded operating data
Gobel VRM remote monitoring for the PowerHarp 32 battery
A connected interface for day-to-day energy management.

Modular expansion

One cabinet today. A larger energy bank tomorrow.

Parallel operation lets a project grow beyond one battery as energy requirements change. Expansion should be designed with matching batteries, protection, busbars, cable sizing and inverter limits considered as one coordinated system.

  • Up to 16 supported batteries in parallel
  • Up to 514.4kWh of nominal storage at 16 units
  • Suitable for larger residential and light-commercial planning

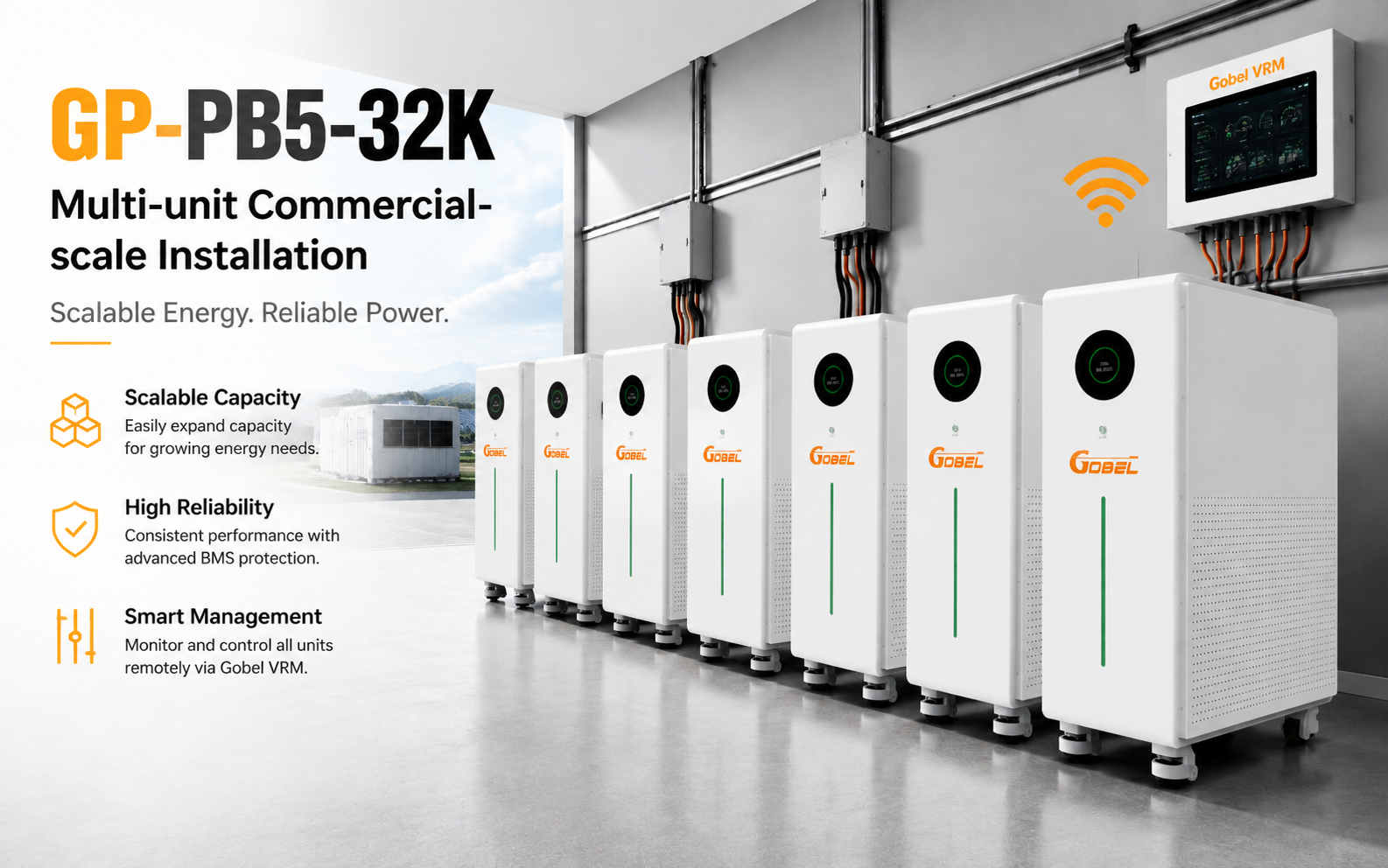

Multiple PowerHarp 32 battery cabinets in a scalable commercial energy storage installation
Modular capacity for projects that need room to grow.

Where it fits

High-capacity storage for larger energy profiles.

PowerHarp 32 is designed for large homes, workshops and light-commercial sites that need substantial low-voltage storage in one cabinet. Its 32.15kWh nominal energy and 15.36kW continuous output reduce the number of enclosures required for a high-capacity residential energy storage system.

Large-home backupLight-commercial storageHigh-load off-grid systemsMulti-cabinet projects

Buyer’s guide

When does a 32kWh battery make sense?

A 32kWh-class battery is most useful when measured energy demand, backup duration or solar production justifies the capacity. PowerHarp 32 should be sized against interval load data where possible, especially when large motors, workshops or multiple high-power circuits are involved.

1

Use real consumption data

Review utility interval data, inverter monitoring or a temporary energy meter. Identify both daily kWh and the highest periods of simultaneous demand instead of sizing from the monthly bill alone.

2

Separate critical and discretionary loads

Create an outage operating plan. Keeping every high-power load available can increase inverter, switchgear and conductor requirements even when the stored energy is sufficient.

3

Engineer the battery bank

PowerHarp 32 supports parallel expansion, but multi-cabinet systems require coordinated protection, busbars, cable lengths, BMS communication and commissioning. Engage a qualified system designer for the final architecture.

Technical details

The numbers behind the system.

Core specifications for system planning. Confirm inverter settings and final configuration with your installer before commissioning.

Model
GP-PB5-32K-JK300
Chemistry
Prismatic LiFePO4, 16S2P
Voltage / capacity
51.2V / 628Ah
Nominal energy
32.15kWh
Continuous / peak current
300A / 400A for 25 seconds
Continuous / peak output
15.36kW / 20.5kW
Depth of discharge
Up to 100%
Cycle life
8,000+ cycles to 70% EOL
BMS
JKBMS JK300 with 2A active balancing
Parallel connection
Up to 16 units / 514.4kWh
Dimensions
910 × 315 × 764mm
Environment
IP21 indoor; fanless cooling

Solar battery knowledge

A practical guide to large solar battery storage.

Why larger batteries need stronger system design

At 15.36kW continuous output and 300A continuous current, PowerHarp 32 can serve demanding projects. Those ratings also make conductor sizing, fault protection, isolation and thermal planning central design tasks.

Residential and commercial loads behave differently

A large home may have strong morning and evening peaks, while a small business may concentrate demand during operating hours. The same 32.15kWh battery can produce different value depending on load timing and available solar generation.

What modular expansion changes

Parallel batteries add energy capacity and can support a larger system, but they do not remove inverter or site limits. PowerHarp 32 supports up to 16 units; the final design must keep current sharing, communication and protection within approved limits.

A precise fit

32kWh storage for large homes and small businesses.

PowerHarp 32 answers searches for a 32kWh home energy storage battery, a 51.2V 628Ah LiFePO4 battery cabinet and a high-capacity whole-house backup system.

With 15.36kW continuous output and 16-unit parallel expansion, it also fits light-commercial solar battery storage, large off-grid systems and multi-cabinet 48V energy storage projects.

Plan your system

Tell us what you want to power.

Share your inverter model, available space and target backup time. Our team can help you identify the right battery configuration.

Discuss your project
Battery FAQ

Frequently asked questions

View all Q&A
How many PowerThor 5000 batteries do I need for a solar backup system?
Each PowerThor 5000 module provides 5.12kWh nominal energy, so the required quantity depends on essential-load kWh, desired backup time and reserve for conversion losses and operating limits. Also verify the inverter battery-current limit and system protection; the product supports 16 parallel units as standard and up to 32 with supported firmware.
How does PowerThor 5000 communicate with a solar inverter?
PowerThor 5000 uses a JK-Inverter BMS with CAN configured for Victron Energy by default and RS485 configured for Growatt by default, plus Bluetooth for local commissioning. Always confirm the exact inverter model, cable pinout, protocol selection and firmware because a matching connector alone does not establish compatibility.
How much power can the PowerHarp 32 battery deliver?
PowerHarp 32 provides 32.15kWh nominal energy and 15.36kW continuous output, with a 20.5kW peak rating under the specified current and duration limits. Its 51.2V 628Ah architecture uses a 300A BMS, so cable sizing, isolation and fault protection must be engineered for the full system current.
Is PowerHarp 32 suitable for a large home or small business?
PowerHarp 32 can suit large residential, workshop and light-commercial energy profiles when 32.15kWh of storage and 15.36kW continuous output match the measured load. Use interval consumption data where possible and have a qualified designer plan the inverter, protection, conductors and any parallel battery bank.
Can PowerHarp 16 be used for whole-house battery backup?
PowerHarp 16 is designed for residential backup and provides 16.07kWh nominal energy, 7.68kW continuous output and 10.2kW peak output under the stated conditions. Whether it can support the entire home depends on the selected circuits, starting loads, inverter, transfer equipment and required backup duration.
What is the difference between PowerHarp 16 and PowerFable 16?
Both provide approximately 16.07kWh from a 51.2V 314Ah LiFePO4 pack, but their installation formats differ. PowerHarp 16 is an integrated floor-standing indoor cabinet, while PowerFable 16 uses a serviceable 19-inch 6U rack format that can be installed only in its approved rack, stacking or caster configuration.
