Gobel PowerHarp 16 16.07kWh Whole-House LiFePO4 Battery

Model:
GP-PB3-16K
Battery Type:
Prismatic LiFePO4
Nominal Voltage:
51.2V
Nominal Capacity:
314Ah
Total Energy:
16kWh
Size:
482.6*771.5*241mm
Warranty:
5-10 Years
EU & US Local Warehouses
Fast DDP delivery in 3-7 days
Up to 10-Year Warranty
Industry-leading coverage, 6000+ cycles
Certified Safety
CE / UN38.3 / MSDS certified
Product Introduction

Whole-house floor-standing battery

Home energy, designed to stand on its own.

A refined 16.07kWh floor-standing LiFePO4 battery for solar self-consumption, whole-house backup and off-grid energy systems.

PowerHarp 16 product view
16.07kWhNominal energy
7.68kWContinuous output
10.2kWPeak output
8,000+Cycle life
PowerHarp 16 LiFePO4 battery design

Designed around real installations

A complete 16kWh cabinet. No rack required.

PowerHarp 16 places a 51.2V 314Ah LiFePO4 battery inside a compact indoor cabinet. Heavy-duty casters simplify positioning, while the integrated format keeps installation clean for utility rooms, garages and dedicated solar storage spaces.

Technology with purpose

Engineered for real homes and real loads.

01

150A continuous current

The battery supports 150A continuous charge and discharge, with a 200A peak for 25 seconds and up to 10.2kW peak output.

02

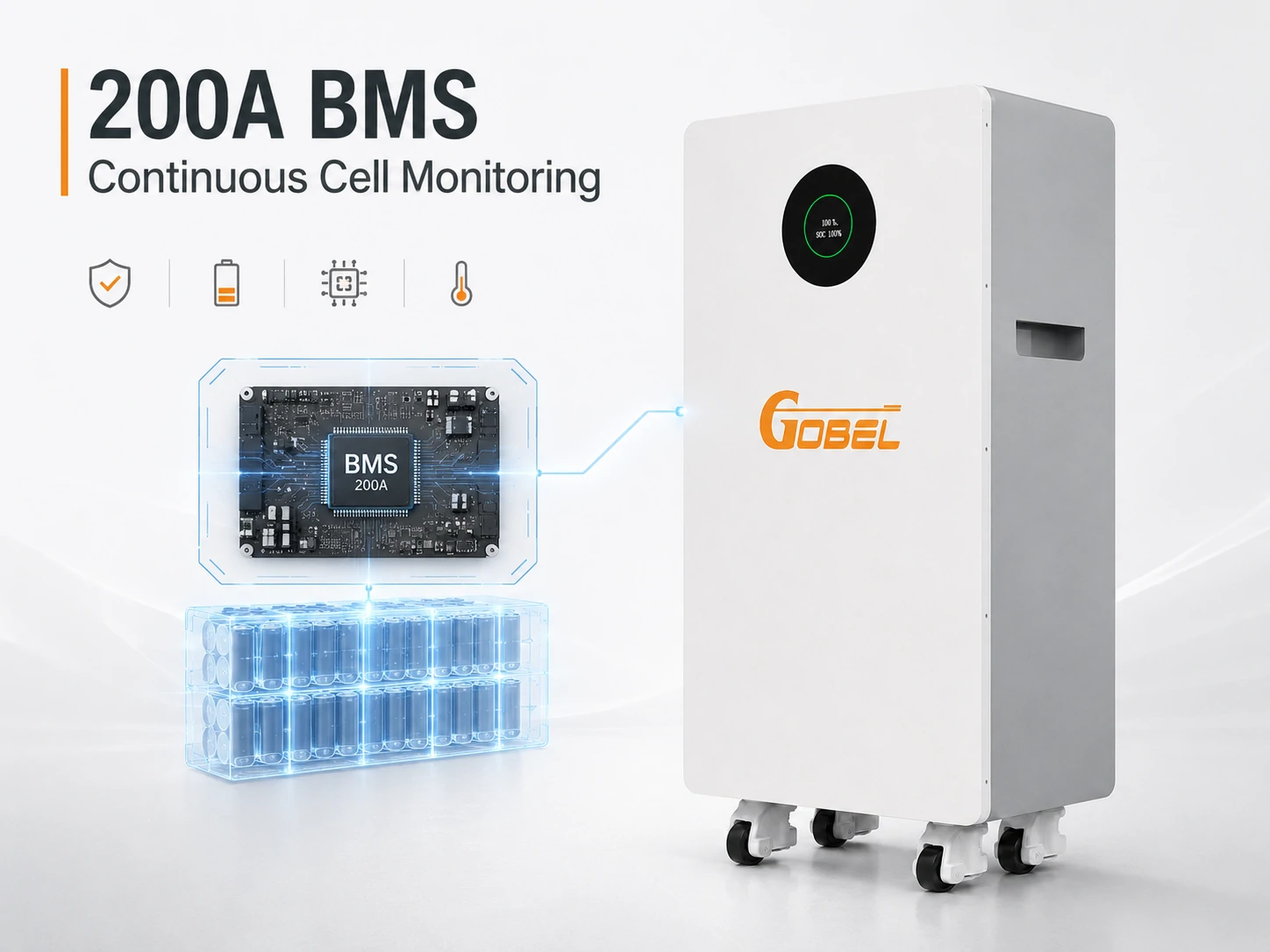

Smart BMS choices

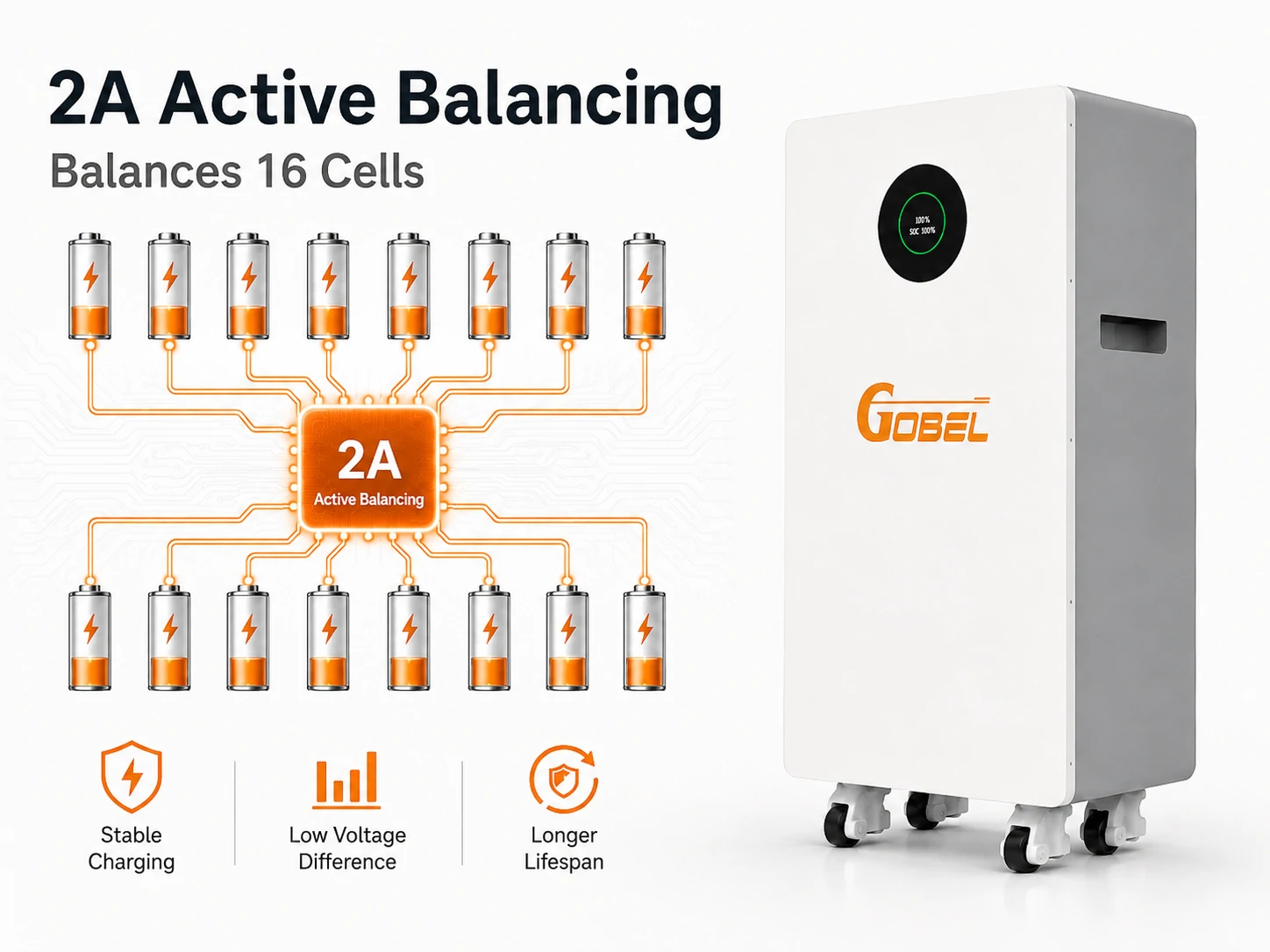

Choose JKBMS JK200 or PCBMS PC200B configurations, both supported by 2A bidirectional active balancing for controlled cell management.

03

Connected monitoring

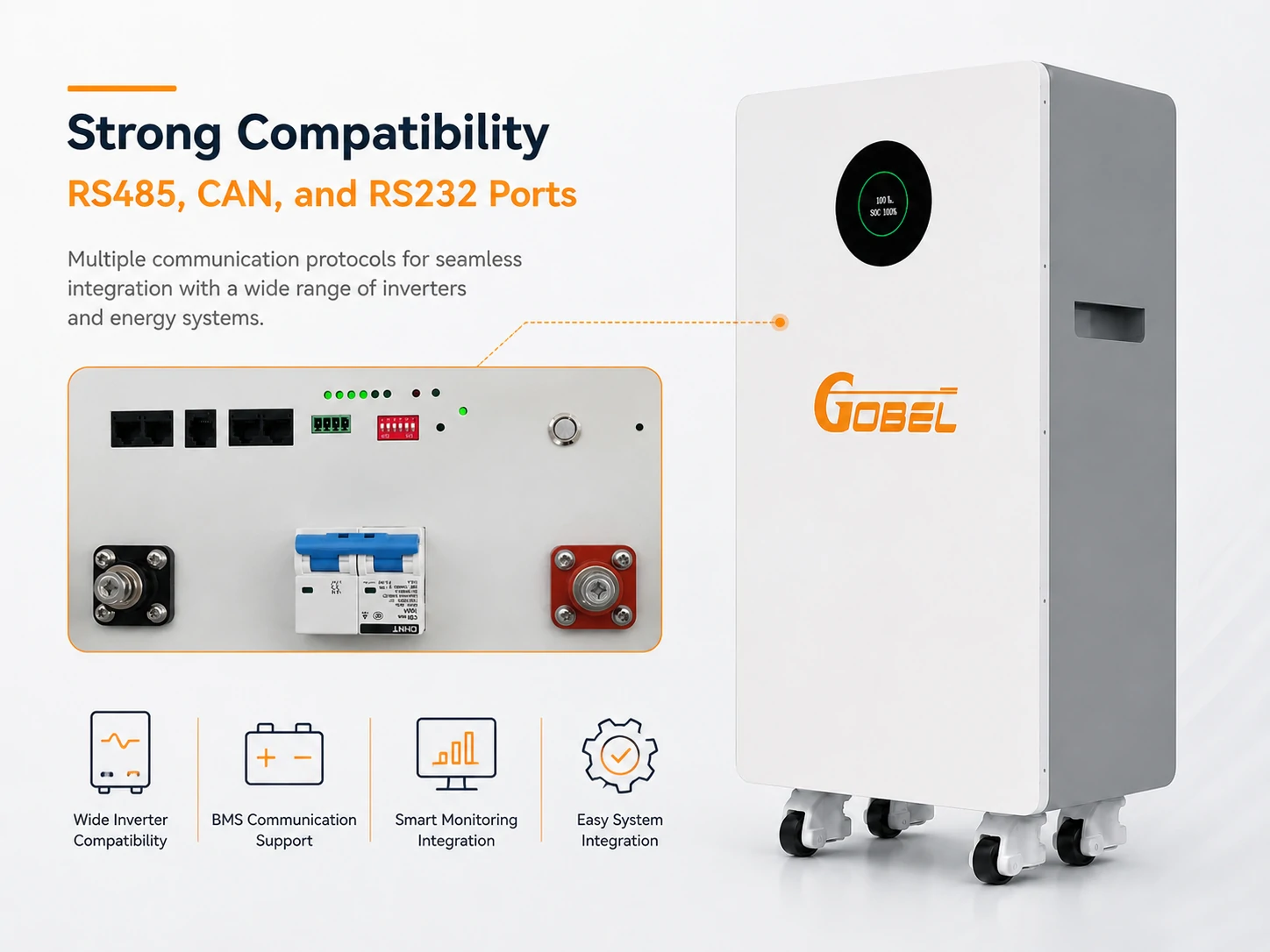

Depending on configuration, the system supports Gobel VRM, Home Assistant, ioBroker, Bluetooth and Wi-Fi-connected visibility.

04

Expandable whole-house storage

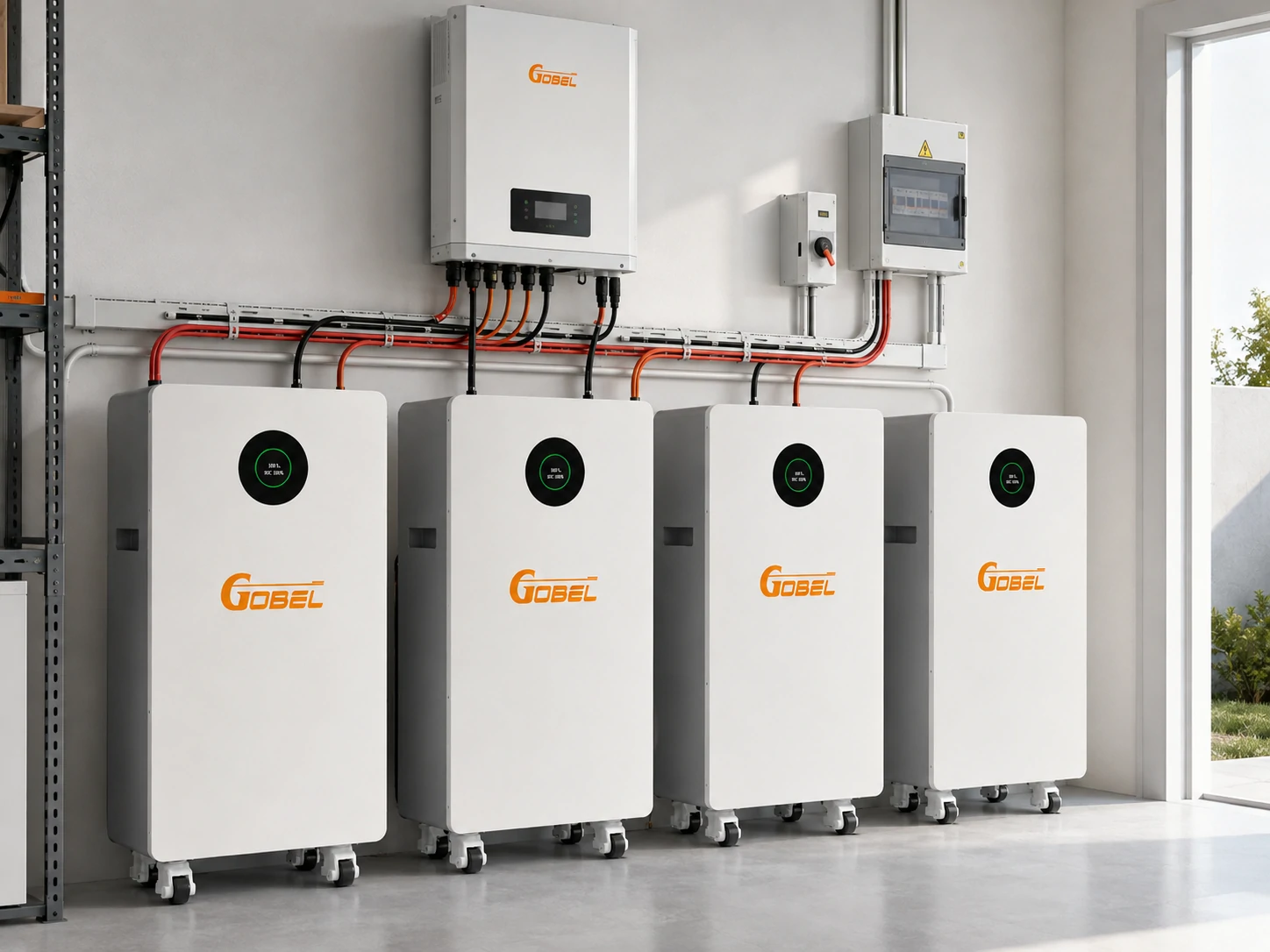

Parallel architecture supports up to 16 JK200 systems or 63 PC200B systems for projects that require more than one battery cabinet.

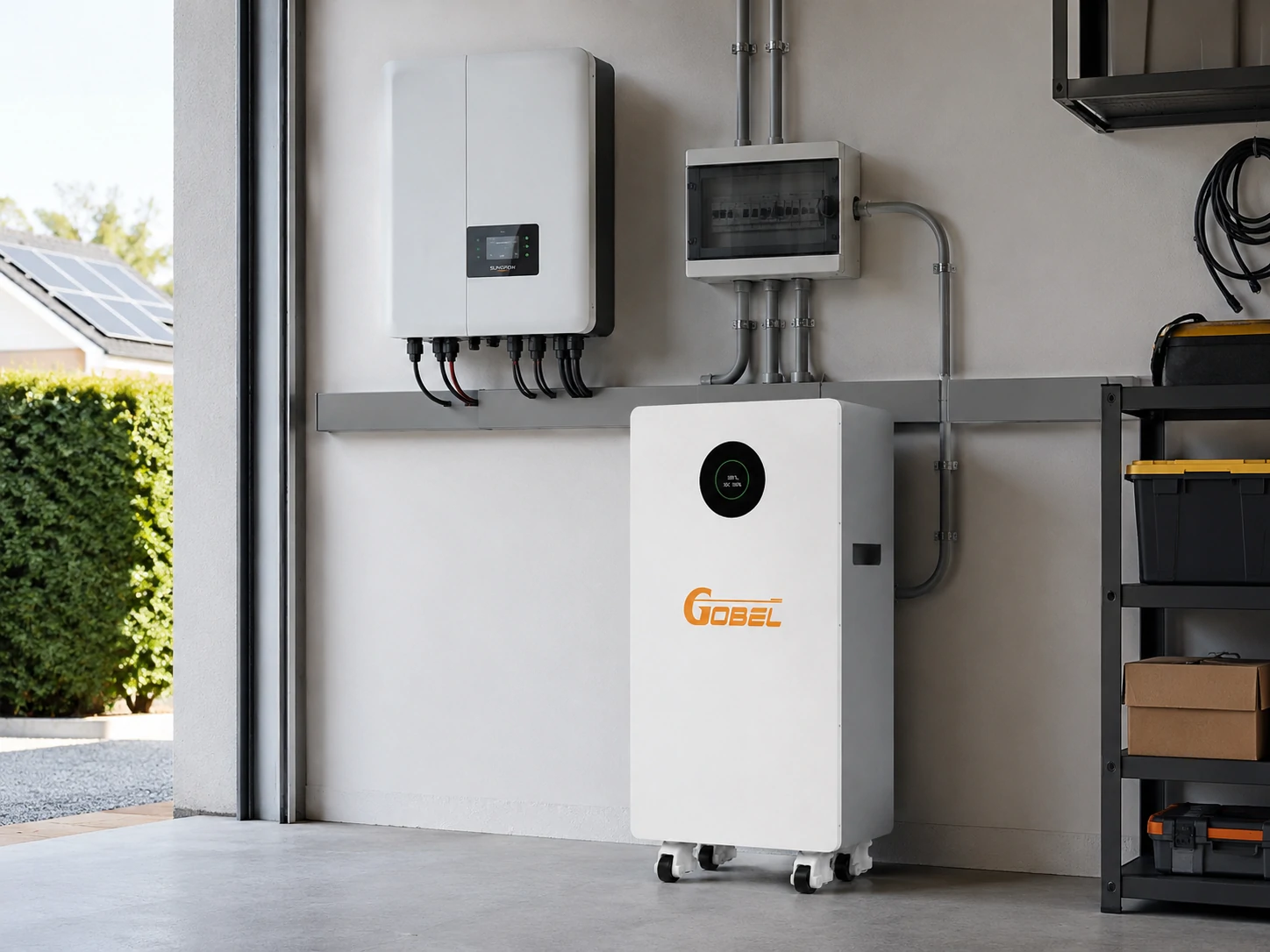

PowerHarp 16 solar energy storage application

Ready for everyday energy

Quiet in the background. Ready when it matters.

Passive fanless cooling, integrated electrical protection and aerosol fire suppression make PowerHarp 16 a considered foundation for indoor whole-house battery backup.

Where it fits

A complete cabinet for whole-house energy planning.

PowerHarp 16 suits homeowners who prefer a floor-standing battery cabinet instead of a rack. It brings 16.07kWh of LiFePO4 storage, strong continuous output and integrated mobility into a format designed for utility rooms, garages and dedicated indoor energy spaces.

Whole-house battery backupResidential energy storageOff-grid home systemsSolar self-consumption

Buyer’s guide

How to plan a whole-house battery backup.

Whole-house does not mean every appliance must run during every outage. A professional design defines priority circuits, expected operating hours and high-starting-current loads, then matches both energy and power. PowerHarp 16 provides 16.07kWh nominal energy, 7.68kW continuous output and 10.2kW peak output.

1

Choose priority circuits

Decide whether the system should support essentials only or also larger loads such as pumps, HVAC or cooking equipment. This decision usually has more impact on battery and inverter size than the home’s floor area.

2

Calculate kWh and kW separately

Use appliance wattage and operating time to estimate energy. Then total the loads likely to run together and account for starting surges to check power.

3

Design the complete electrical path

Confirm inverter compatibility, transfer equipment, conductor size, circuit protection, earthing and local installation requirements. Battery capacity is only one part of a reliable backup system.

Technical details

The numbers behind the system.

Core specifications for system planning. Confirm inverter settings and final configuration with your installer before commissioning.

Model
GP-PB3-16K
Chemistry
Prismatic LiFePO4, 16S1P
Voltage / capacity
51.2V / 314Ah
Nominal energy
16.07kWh
Continuous / peak current
150A / 200A for 25 seconds
Continuous / peak output
7.68kW / 10.2kW
Depth of discharge
Up to 100%
Cycle life
8,000+ cycles to 70% EOL
BMS options
JKBMS JK200 or PCBMS PC200B
Parallel connection
Up to 16 JK200 / 63 PC200B units
Dimensions
850 × 480 × 280mm
Environment
IP21 indoor; fanless cooling

Solar battery knowledge

The essentials of whole-house solar battery design.

What does a 16kWh battery mean?

The 16.07kWh figure is nominal stored energy. It helps compare home battery systems, but usable backup time still depends on configured depth of discharge, inverter efficiency and the changing load of the home.

Why continuous and peak power both matter

Continuous power covers loads that remain on. Peak power addresses short surges from motors and other equipment. PowerHarp 16 is rated for 7.68kW continuous output and a 10.2kW peak, subject to the stated current and duration limits.

When parallel expansion is useful

A second battery can increase stored energy and system current capability when the overall design supports it. Plan expansion before installation so communication, protection, cable balance and physical clearances are ready for future cabinets.

A precise fit

A 16kWh whole-house battery with room to grow.

For homes evaluating a 16kWh whole-house battery backup, a floor-standing LiFePO4 solar battery or a 51.2V 314Ah energy storage cabinet, PowerHarp 16 offers a clean all-in-one battery format.

It is well suited to residential solar self-consumption, 48V inverter battery systems and off-grid home energy storage where strong continuous output and future parallel expansion matter.

Plan your system

Tell us what you want to power.

Share your inverter model, available space and target backup time. Our team can help you identify the right battery configuration.

Discuss your project
Battery FAQ

Frequently asked questions

View all Q&A
How many PowerThor 5000 batteries do I need for a solar backup system?
Each PowerThor 5000 module provides 5.12kWh nominal energy, so the required quantity depends on essential-load kWh, desired backup time and reserve for conversion losses and operating limits. Also verify the inverter battery-current limit and system protection; the product supports 16 parallel units as standard and up to 32 with supported firmware.
How does PowerThor 5000 communicate with a solar inverter?
PowerThor 5000 uses a JK-Inverter BMS with CAN configured for Victron Energy by default and RS485 configured for Growatt by default, plus Bluetooth for local commissioning. Always confirm the exact inverter model, cable pinout, protocol selection and firmware because a matching connector alone does not establish compatibility.
How much power can the PowerHarp 32 battery deliver?
PowerHarp 32 provides 32.15kWh nominal energy and 15.36kW continuous output, with a 20.5kW peak rating under the specified current and duration limits. Its 51.2V 628Ah architecture uses a 300A BMS, so cable sizing, isolation and fault protection must be engineered for the full system current.
Is PowerHarp 32 suitable for a large home or small business?
PowerHarp 32 can suit large residential, workshop and light-commercial energy profiles when 32.15kWh of storage and 15.36kW continuous output match the measured load. Use interval consumption data where possible and have a qualified designer plan the inverter, protection, conductors and any parallel battery bank.
Can PowerHarp 16 be used for whole-house battery backup?
PowerHarp 16 is designed for residential backup and provides 16.07kWh nominal energy, 7.68kW continuous output and 10.2kW peak output under the stated conditions. Whether it can support the entire home depends on the selected circuits, starting loads, inverter, transfer equipment and required backup duration.
What is the difference between PowerHarp 16 and PowerFable 16?
Both provide approximately 16.07kWh from a 51.2V 314Ah LiFePO4 pack, but their installation formats differ. PowerHarp 16 is an integrated floor-standing indoor cabinet, while PowerFable 16 uses a serviceable 19-inch 6U rack format that can be installed only in its approved rack, stacking or caster configuration.
