Gobel PowerCarol 16 16.08kWh IP65 Outdoor LiFePO4 Battery

Model:
GP-WP1-16K
Battery Type:
Prismatic LiFePO4
Nominal Voltage:
51.2V
Nominal Capacity:
314Ah
Total Energy:
16.08kWh
Communication Port:
RS485, RS232, CAN,WIFI(option)
Size:
960 * 480 * 270(mm)
EU & US Local Warehouses
Fast DDP delivery in 3-7 days
Up to 10-Year Warranty
Industry-leading coverage, 6000+ cycles
Certified Safety
CE / UN38.3 / MSDS certified
Product Introduction

IP65 outdoor battery storage

Home energy storage.
Ready for more locations.

PowerCarol 16 places a 16.08kWh LiFePO4 system in an IP65-rated mobile enclosure for indoor or outdoor solar storage and backup applications.

16.08kWhNominal energy
7.68kWContinuous output
IP65Weather-resistant enclosure
63Supported parallel units

Flexible placement

Weather-resistant storage for space-conscious projects.

The IP65-rated enclosure expands the installation options beyond a conventional indoor battery room. Integrated casters and service access help qualified installers position the unit while maintaining a clean, residential appearance.

  • IP65-rated enclosure for suitable indoor or outdoor locations
  • 51.2V 314Ah LiFePO4 architecture
  • Mobile floor-standing format with integrated casters
PowerCarol 16 outdoor LiFePO4 battery installed with a home solar power system
A weather-resistant battery format for professionally planned installations.

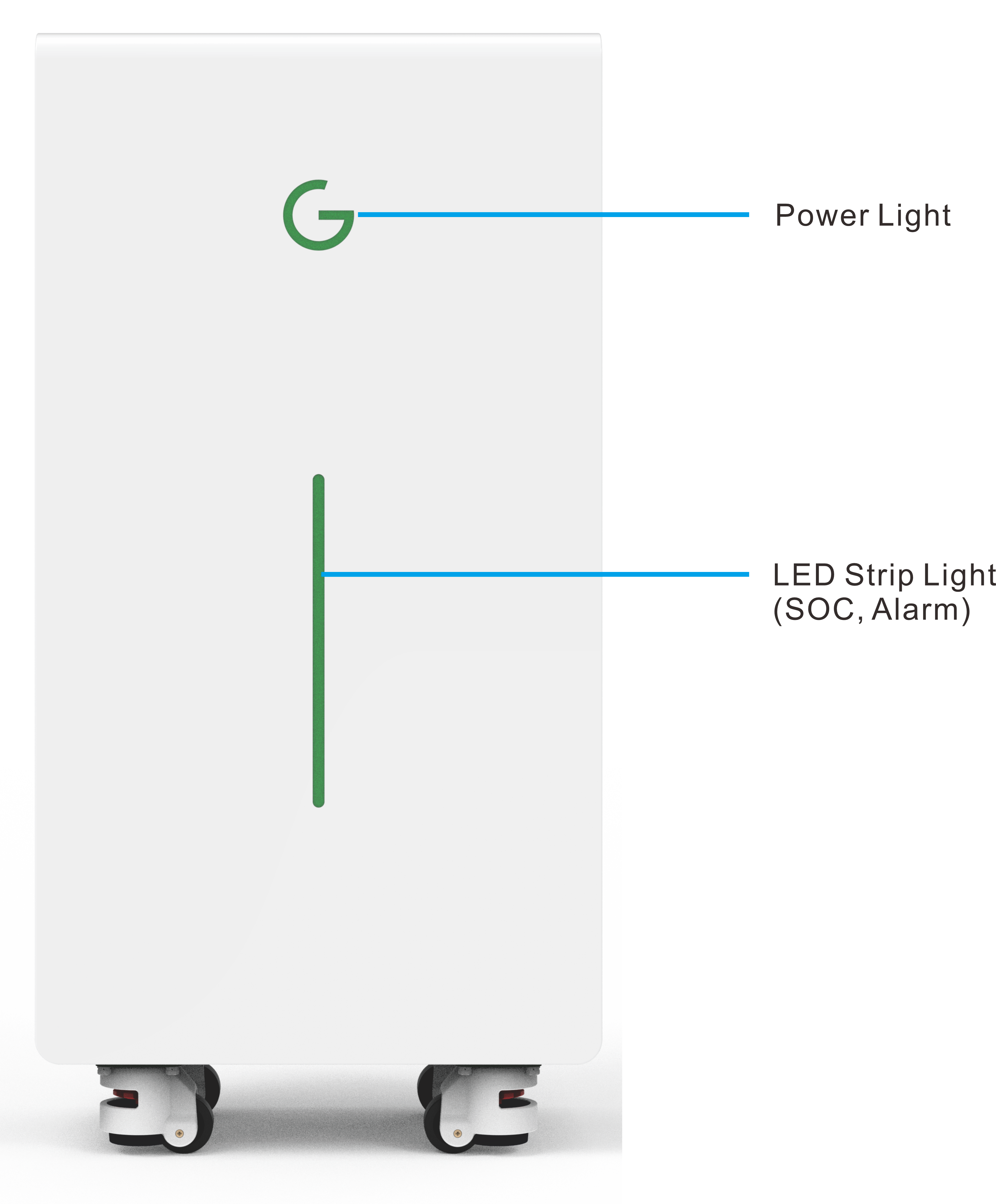

Clear local status

Battery condition visible at a glance.

The front power indicator and vertical status light give a simple local view of the battery. Inside, the BMS monitors the pack and coordinates operating limits with compatible equipment through CAN or RS485 communication.

  • Front power and status indicators
  • 150A continuous charge and discharge current
  • CAN and RS485 communication for compatible inverters
PowerCarol 16 front power light and state-of-charge status indicator
Simple local indicators complement the connected battery-management system.

Remote visibility

Monitor state of charge and cell data remotely.

Optional connected monitoring gives installers and owners a clearer view of battery status without opening the enclosure. Recorded data and alerts can simplify routine checks and fault investigation.

  • Optional Wi-Fi connectivity
  • State-of-charge and cell-voltage monitoring
  • Remote records, alerts and configuration support
Gobel VRM cloud monitoring interface for PowerCarol 16 outdoor battery
Connected monitoring for better day-to-day system awareness.

Room to grow

A modular path from home backup to larger storage.

PowerCarol 16 can be combined in supported parallel configurations for larger residential and commercial energy requirements. Final system size depends on the selected BMS architecture, inverter capability and site protection design.

  • Up to 63 supported units in parallel
  • Suitable for modular residential and commercial planning
  • Expansion requires coordinated protection and cable design
Large parallel array of PowerCarol 16 outdoor LiFePO4 batteries
The same battery platform can support a much larger energy bank.

Where it fits

Outdoor-ready storage when indoor space is limited.

PowerCarol 16 is intended for projects that need a weather-resistant battery enclosure near the solar and electrical equipment. Its IP65 cabinet, 16.08kWh capacity and professional communication interfaces make it a focused option for outdoor home battery backup and distributed solar storage.

Outdoor solar storageSpace-limited homesDistributed energy sitesOff-grid battery systems

Buyer’s guide

Planning an outdoor solar battery installation.

Outdoor placement solves a space problem but adds environmental and access considerations. PowerCarol 16 is IP65 rated, yet the complete installation must still respect the specified operating environment, drainage, clearances, service access and local electrical rules.

1

Size the electrical load

Calculate required backup energy and simultaneous power just as you would for an indoor system. PowerCarol 16 provides 16.08kWh nominal energy and 7.68kW continuous output.

2

Evaluate the location

Choose a stable, serviceable position and follow the manufacturer’s limits for temperature and installation. IP65 describes enclosure resistance to dust and water jets; it does not mean the battery can be submerged or installed without site protection.

3

Coordinate cables and communication

Plan weather-appropriate routing, isolation, overcurrent protection and CAN or RS485 communication with the inverter. Minimize unnecessary cable length while preserving safe access.

Technical details

The numbers behind the system.

Core specifications for system planning. Confirm inverter settings and final configuration with your installer before commissioning.

Model
GP-WP1-16K
Chemistry
Prismatic LiFePO4, 16S1P
Voltage / capacity
51.2V / 314Ah
Nominal energy
16.08kWh
Continuous / peak current
150A / 200A for 25 seconds
Maximum output
7.68kW continuous
Cycle life
8,000+ cycles to 70% capacity
Communication
RS485, RS232, CAN, optional Wi-Fi
BMS
PC200B with 2A active balancer
Parallel connection
Up to 63 units
Dimensions
480 × 959 × 270mm
Environment
IP65 indoor / outdoor

Solar battery knowledge

What IP65 means for a solar battery.

IP ratings describe enclosure protection

The first digit in IP65 indicates dust protection, while the second addresses water jets. The rating is valuable for outdoor energy storage, but installers must still follow orientation, temperature, clearance and maintenance requirements.

Outdoor batteries still need thermal planning

Battery performance and charging limits can change with temperature. A shaded, ventilated and specification-compliant location can be more suitable than an exposed position even when the enclosure is weather resistant.

Why local status and remote monitoring matter

PowerCarol 16 provides a local LED status bar and optional connected monitoring. Together they can help owners and installers observe state of charge and alarms without treating the enclosure as a sealed, maintenance-free appliance.

A precise fit

A 16kWh outdoor battery for flexible solar projects.

PowerCarol 16 is a purpose-built option for buyers comparing a 16kWh outdoor LiFePO4 battery, an IP65 solar battery cabinet or a 51.2V 314Ah battery for home backup.

Its outdoor-ready enclosure, CAN/RS485 communication and 63-unit expansion make it suitable for residential solar storage, off-grid battery systems and distributed energy projects where installation flexibility is essential.

Plan your system

Tell us what you want to power.

Share your inverter model, available space and target backup time. Our team can help you identify the right battery configuration.

Discuss your project
Battery FAQ

Frequently asked questions

View all Q&A
How many PowerThor 5000 batteries do I need for a solar backup system?
Each PowerThor 5000 module provides 5.12kWh nominal energy, so the required quantity depends on essential-load kWh, desired backup time and reserve for conversion losses and operating limits. Also verify the inverter battery-current limit and system protection; the product supports 16 parallel units as standard and up to 32 with supported firmware.
How does PowerThor 5000 communicate with a solar inverter?
PowerThor 5000 uses a JK-Inverter BMS with CAN configured for Victron Energy by default and RS485 configured for Growatt by default, plus Bluetooth for local commissioning. Always confirm the exact inverter model, cable pinout, protocol selection and firmware because a matching connector alone does not establish compatibility.
How much power can the PowerHarp 32 battery deliver?
PowerHarp 32 provides 32.15kWh nominal energy and 15.36kW continuous output, with a 20.5kW peak rating under the specified current and duration limits. Its 51.2V 628Ah architecture uses a 300A BMS, so cable sizing, isolation and fault protection must be engineered for the full system current.
Is PowerHarp 32 suitable for a large home or small business?
PowerHarp 32 can suit large residential, workshop and light-commercial energy profiles when 32.15kWh of storage and 15.36kW continuous output match the measured load. Use interval consumption data where possible and have a qualified designer plan the inverter, protection, conductors and any parallel battery bank.
Can PowerHarp 16 be used for whole-house battery backup?
PowerHarp 16 is designed for residential backup and provides 16.07kWh nominal energy, 7.68kW continuous output and 10.2kW peak output under the stated conditions. Whether it can support the entire home depends on the selected circuits, starting loads, inverter, transfer equipment and required backup duration.
What is the difference between PowerHarp 16 and PowerFable 16?
Both provide approximately 16.07kWh from a 51.2V 314Ah LiFePO4 pack, but their installation formats differ. PowerHarp 16 is an integrated floor-standing indoor cabinet, while PowerFable 16 uses a serviceable 19-inch 6U rack format that can be installed only in its approved rack, stacking or caster configuration.
