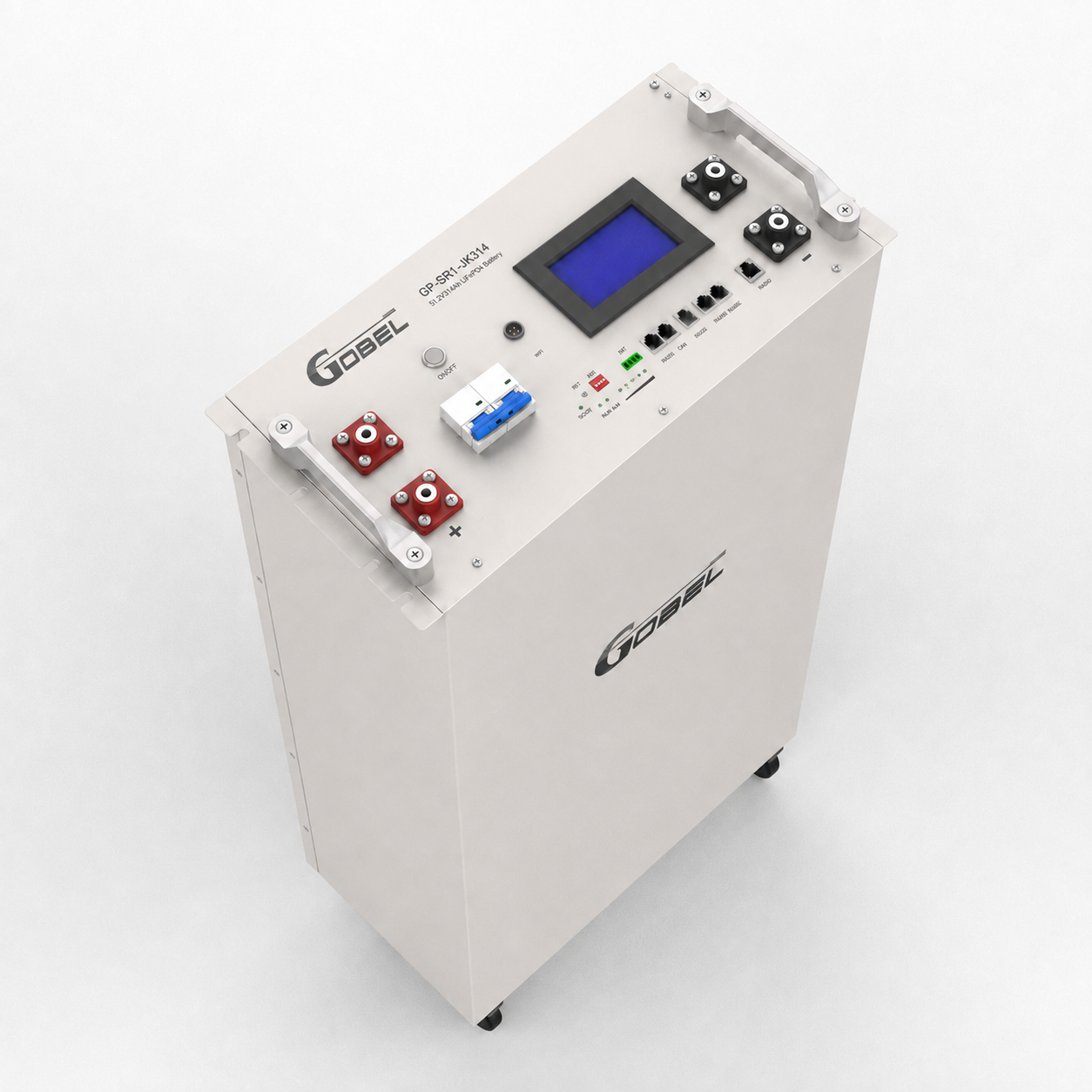

Gobel PowerFable 16 16.08kWh LiFePO4 Energy Storage System (51.2V 314Ah) - 6U Rack Mount, CAN/RS485 Compatible with Victron, Deye & Growatt

Brand Name:

GOBEL, OEM&ODM

Model Number:

GP-SR1-16K

Nominal Voltage:

51.2V

Nominal Capacity:

314Ah

Total Energy:

16kWh

Interface:

RS485、RS232、CAN、WIFI（Optional）

Warranty:

5-10Years

Datasheet

Product Introduction

Gobel PowerFable 16 · 51.2V 314Ah LiFePO4 Server Rack Battery

The Full 16kWh LiFePO4 Battery.
At a Smarter Price.

Name: Gobel PowerFable 16 16.08kWh LiFePO4 Energy Storage System (51.2V 314Ah) - 6U Rack Mount, CAN/RS485 Compatible with Victron, Deye & Growatt
Brand: Gobel Power Energy (Shenzhen) Co., Ltd.

Same 314Ah LiFePO4 cells. Same 6U server rack form factor. Same 8,000-cycle endurance. The Standard edition strips away the premium surcharge — without stripping away what matters.

16.08 kWh

Usable Energy

8,000+

Cycles Lifespan

16 Units

Max Parallel

257 kWh

Max System Capacity

Why Choose Gobel PowerFable 16?

Smarter Choice

Everything You Need. Nothing You Don’t.

Delivers the same 16.08kWh of usable energy as premium models — same cobalt-free 314Ah prismatic LiFePO4 cells, same 6U server rack chassis, same 8,000-cycle longevity at an accessible price.

16.08kWh usable energy: Premium performance, accessible cost
Proven architecture: 51.2V nominal voltage, 16S1P configuration

Intelligent Core

GP-JK200 BMS + Built-in 2.0A Active Balancer

Runs 200A managed throughput with per-cell voltage/temp monitoring and continuous 2.0A active charge transfer to keep all 16 cells in perfect lockstep.

GP-JK200 200A BMS: Comprehensive thermal & electrical protection
Voltage Cutoffs: 58.4V charge / 40V discharge protection

Tested & Proven

100% Factory Cycling & Cell Sorting

Every unit undergoes a full charge-discharge cycling test before shipment. Programmatic sorting ensures strict capacity & resistance matching for maximum safety.

Backed by 5-10 Year Warranty & Gobel Power Engineering Support.

Works With Everything

Universal Inverter Compatibility

RS485, CAN, and RS232 ports connect directly to leading inverter brands without protocol converters or compatibility headaches.

Verified with: Victron, Deye, Growatt, Sol-Ark, Luxpower, GoodWe, Schneider.

Room to Grow

Scalable up to 16 Modules (257kWh)

Start with 16kWh for home backup and parallel up to 16 modules for 257kWh commercial or agricultural storage. Fits standard 19-inch 6U rack slots or floor stands with included wheels. Natural convection cooling guarantees zero noise.

One Battery. Every Scenario.

From a single-family solar setup to a 16-module commercial array, the Gobel PowerFable 16 fits the budget and the job.

Home Solar & Self-ConsumptionOff-Grid & Remote CabinsFarm & Agricultural StorageSmall Business BackupDIY & Installer Projects

Technical Specifications

Product Model	GP-SR1-16K
Battery Chemistry & Configuration	LiFePO4 (Lithium Iron Phosphate) / 16S1P
Nominal Voltage & Capacity	51.2V \| 314Ah (16.08 kWh Usable)
BMS & Active Balancer	GP-JK200 200A BMS + 2.0A Active Balancer (4A Optional)
Cycle Life	≥8,000 Cycles @ 80% DoD
Parallel Expansion	Up to 16 Units in Parallel (Max 257 kWh)
Communication Ports	RS485, CAN, RS232, Wi-Fi (Optional)
Form Factor & Size	6U Server Rack (510 × 449 × 133 mm)
Warranty	5-10 Year Warranty

The Smart Money Goes Standard.

Same LiFePO4 cells. Same capacity. Same rack. Lower cost. The Gobel PowerFable 16 delivers where it counts for home solar storage and off-grid backup — and every unit is individually tested before it ships, because real-world performance is the only performance that matters.

51.2V · 314Ah · 16.08kWh · 6U Rack | GP-JK200 BMS · 2A Active Balancer · RS485/CAN/RS232 · 5-10 Year Warranty
