Gobel PowerFable 16 Pro 16kWh Server Rack Battery - 51.2V 314Ah LiFePO4 ESS with EVE Grade-A Cells, 200A Smart BMS & 2.0A Active Balancer

Brand Name:

GOBEL, OEM&ODM

Model Number:

GP-SR1-16K

Nominal Voltage:

51.2V

Nominal Capacity:

314Ah

Total Energy:

16kWh

Interface:

RS485、RS232、CAN、WIFI（Optional）

Warranty:

5-10Years

Datasheet

Product Introduction

Gobel Battery Flagship ESS Series

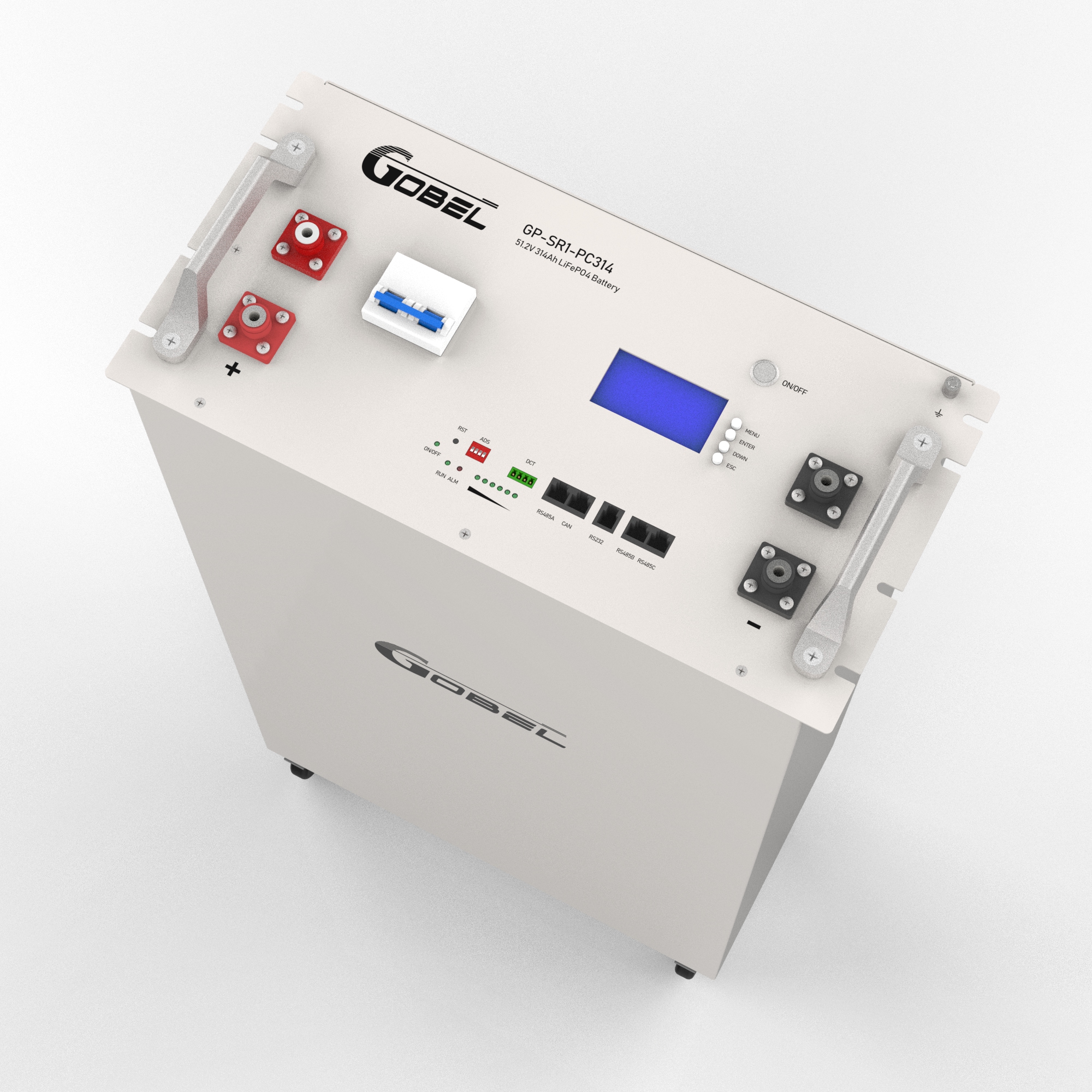

Gobel PowerFable 16 Pro | 51.2V 314Ah 16kWh LiFePO4 Server Rack Battery

Name: Gobel PowerFable 16 Pro 16kWh Server Rack Battery - 51.2V 314Ah LiFePO4 ESS with EVE Grade-A Cells, 200A Smart BMS & 2.0A Active Balancer
Brand: Gobel Power Energy (Shenzhen) Co., Ltd.

High-capacity solar backup power built on factory-fresh EVE 314Ah Grade-A LiFePO4 cells. Features an integrated 200A Smart BMS with 2.0A Active Balancer and closed-loop communication for all major hybrid inverters.

16 kWh

Usable Energy

314 Ah

EVE Grade-A

8,000+

Cycles @ 80% DoD

200A

Smart BMS

63 Units

Max Parallel (1MWh)

10 Years

Warranty

Why Choose Gobel PowerFable 16 Pro?

Premium Cell Tech

Brand-New EVE 314Ah Prismatic Cells

Built exclusively with brand-new, factory-fresh EVE 314Ah HSEV Grade-A cells. Standardized 300 kgf compression prevents swelling and prolongs cell lifecycle.

Zero cobalt: Maximum thermal & chemical safety
Strict matching: Voltage and capacity programmatically matched

Active Protection

200A BMS + Built-in 2.0A Active Balancer

Equipped with a 200A PC200 ESS BMS and true 2.0A Active Balancer (4A optional) to continuously transfer charge between cells, keeping pack voltage perfectly balanced.

Full Protection: Overcharge, over-discharge, overcurrent, and temp sensors
Hardware Disconnect: Heavy-duty 200A front-panel DC breaker

Universal Inverter Compatibility

Pre-loaded CAN Bus and RS485 protocols for seamless closed-loop communication with leading solar inverters.

Compatible with: Victron Energy, Deye, Growatt, Sol-Ark, Luxpower, GoodWe, Solis, SMA, Schneider.

Scalable & Smart Telemetry

Scale up to 63 units in parallel (over 1MWh) with auto-addressing. Monitor via RS485, RS232, optional Wi-Fi, or app.

Integrates with: Home Assistant, Solar Assistant, and Victron VRM.

Technical Specifications

Product Model	GP-SR1-16K
Battery Chemistry & Cell	Lithium Iron Phosphate (LiFePO4) / EVE 314Ah Grade A
Nominal Voltage & Capacity	51.2V \| 314Ah (16.07 kWh Usable)
Continuous Current	200A Max Charge / Discharge
BMS & Active Balancer	200A PC200 ESS BMS + 2.0A Active Balancer (4A Optional)
Cycle Life	≥8,000 Cycles @ 80% DoD (0.5C, 25°C)
Parallel Expansion	Up to 63 Units in Parallel (Max 1.01 MWh)
Communication Ports	CAN Bus, RS485, RS232, Wi-Fi (Optional)
Form Factor & Size	6U Server Rack (482.6 × 771.5 × 241 mm)
Certifications & Warranty	CE, UN38.3, IEC 62619 \| 10-Year Warranty

Frequently Asked Questions

Q: Which inverters work with the Gobel PowerFable 16 Pro?

Natively supports closed-loop CAN/RS485 communication with Victron Energy, Deye, Growatt, Sol-Ark, Luxpower, GoodWe, Solis, Megarevo, SMA, and Schneider.
