Engineered with EVE HSEV Grade LF100L cells, an IP56 rugged aluminum alloy casing, and an integrated GP-JBD100 BMS with Bluetooth. Supports 4S4P connection to scale up to 20kWh (48V).
| 1.28 kWh Nominal Energy | 12.8V / 100Ah Voltage & Capacity | 4S4P (20kWh) Max Scalability | 10 kg Compact & Light |

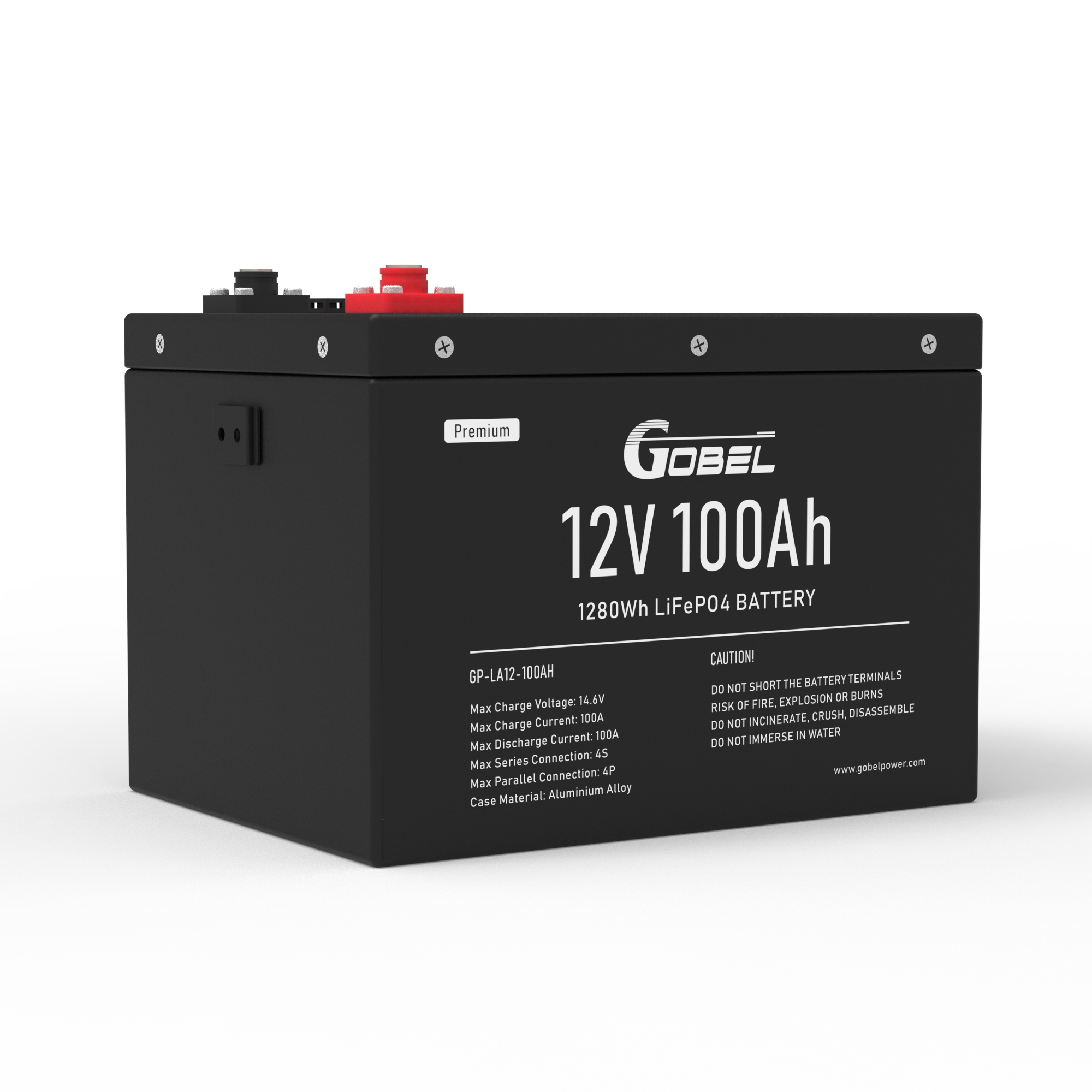

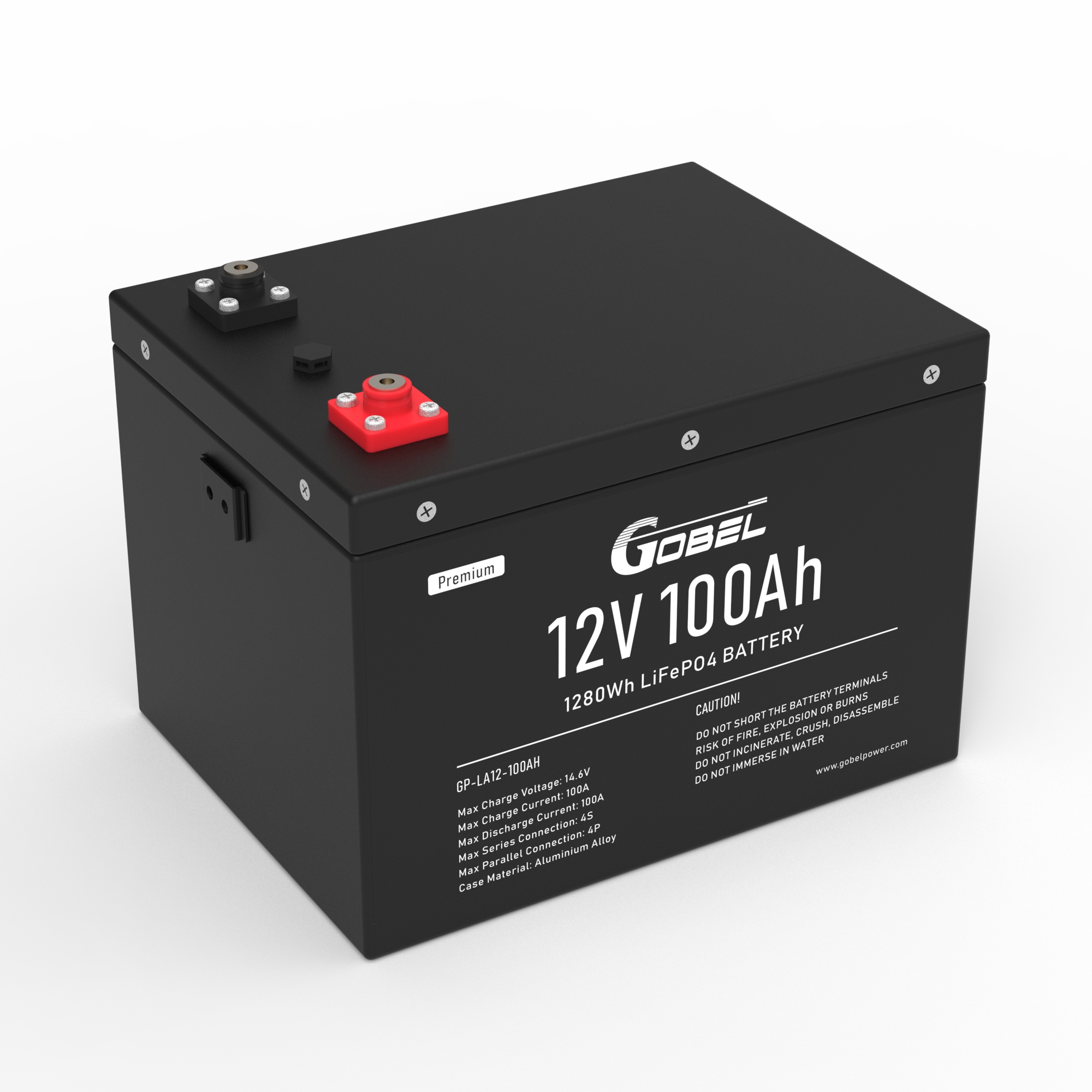

The GP-LA12-100AH Premium module is powered by genuine EVE HSEV Grade LF100L prismatic cells. Advanced programmatic sorting ensures tight consistency across capacity, voltage, and internal resistance for maximum system longevity.
High Efficiency Performance: Delivers ≥95% round-trip efficiency for optimal solar charge retention.
Cobalt-Free Safety: Pure LiFePO4 chemistry eliminates risk of thermal runaway or explosion.
Stable Output: 100A max continuous charge and discharge current rating.
Built with a durable, lightweight aluminum alloy outer casing with IP56 protection rating, offering exceptional heat dissipation and physical protection compared to standard plastic shells.
IP56 Enclosure Rating: Outstanding dust and water spray resistance for marine, RV, and off-grid use.
Compact & Portable: Measures 260mm (L) x 192mm (W) x 195mm (H) at only 10 kg, complete with a lifting strap.
Enhanced Heat Dissipation: Metallic enclosure assists in natural heat release during heavy charge/discharge cycles.
Equipped with the GP-JBD100 Smart BMS featuring Bluetooth communication and dedicated low-temperature charge cutoff protection.
Bluetooth Wireless Monitoring: Check real-time voltage, SOC, temperature, and current directly from your phone.
Low Temperature Protection: Prevents charging damage below freezing temperatures to safeguard cell life.
Full Safety Protection: Guards against over/under voltage, over current, and high/low temperature anomalies.
Supports series connection up to 48V (4S) and parallel connection up to 4P (up to 16 modules total) to scale system capacity to 20kWh.
48V System Ready: Easily connect 4 units in series to create a 48V nominal energy storage bank.
Max 16 Modules: Flexible 4P4S combinations to match various off-grid and backup power setups.
Versatile Compatibility: Seamless integration with external inverters for On-Grid, Off-Grid, or Backup operations.
| Product Model | Gobel Power GP-LA12-100AH Premium |
| Nominal Energy / Capacity | 1.28 kWh | 100Ah |
| Nominal Voltage / Operating Voltage | 12.8 VDC (11.0V – 13.8V) |
| Cell Model & Chemistry | EVE HSEV Grade LF100L Prismatic LiFePO4 |
| BMS Model & Features | GP-JBD100 BMS with Low Temperature Charge Protection |
| Max Charge / Discharge Current | 100 A / 100 A |
| Communication & Round-Trip Efficiency | Bluetooth | ≥95% Round-Trip Efficiency |
| Scalability Options | Max 16 Modules in 4P4S Configuration (Up to 20 kWh) |
| Dimensions (L/W/H) & Weight | 260 x 192 x 195 mm | 10 kg |
| Case Material & Protection Rating | Aluminum Alloy | IP56 Waterproof & Dustproof |
| Operating Temp / Certification | -20°C to +50°C | UN38.3 Certified |
| Warranty | 5 Years Standard Warranty |
Get premium performance with genuine EVE cells and IP56 aluminum protection. Contact Gobel Power team today for bulk discounts, customization, and engineering assistance.
