Delivering high-capacity 5.12kWh energy storage with an integrated 8S 150A BMS and durable ABS enclosure. Designed as a lightweight drop-in lead-acid replacement with high power output and extended cycle life for RVs, marine, telecom, and off-grid solar systems.
| 5.12 kWhNominal Energy | 25.6V / 200AhVoltage & Capacity | 150A / 450ACont. / Pulse Discharge | 4,000+Cycles @ 100% DOD |

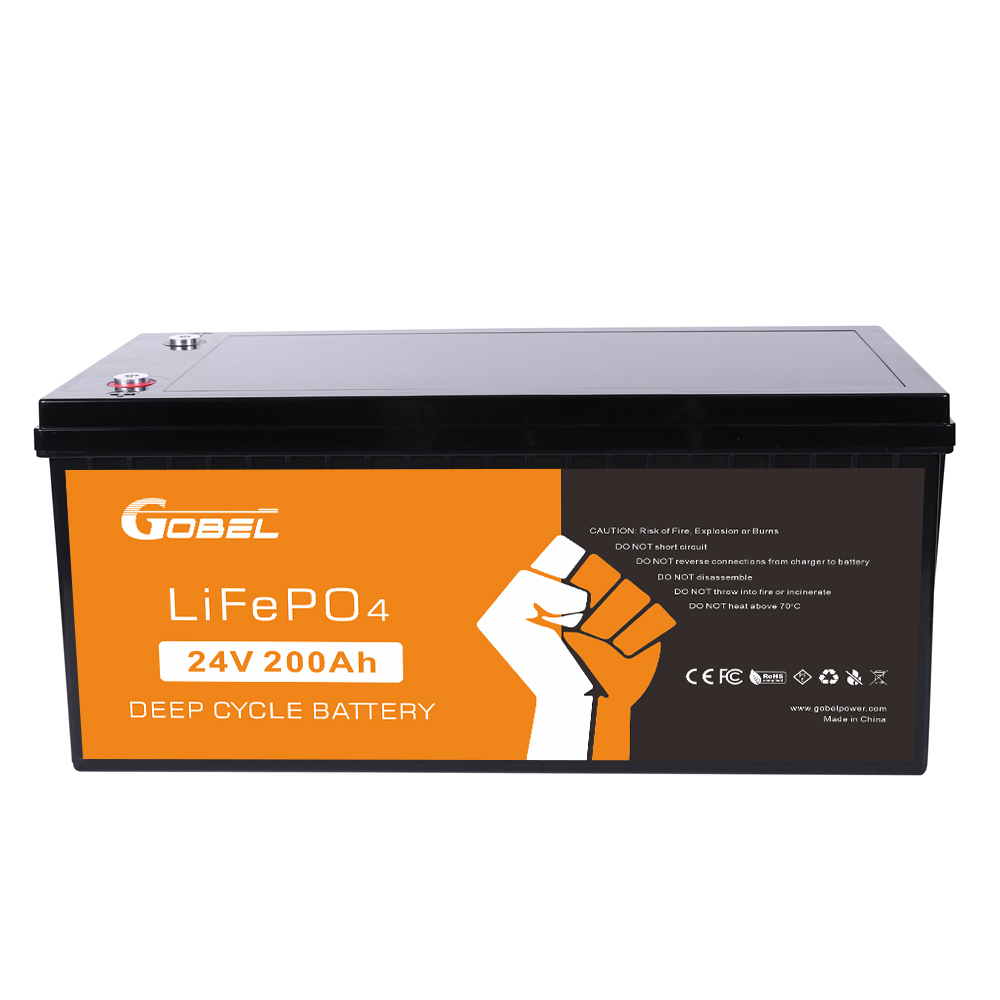

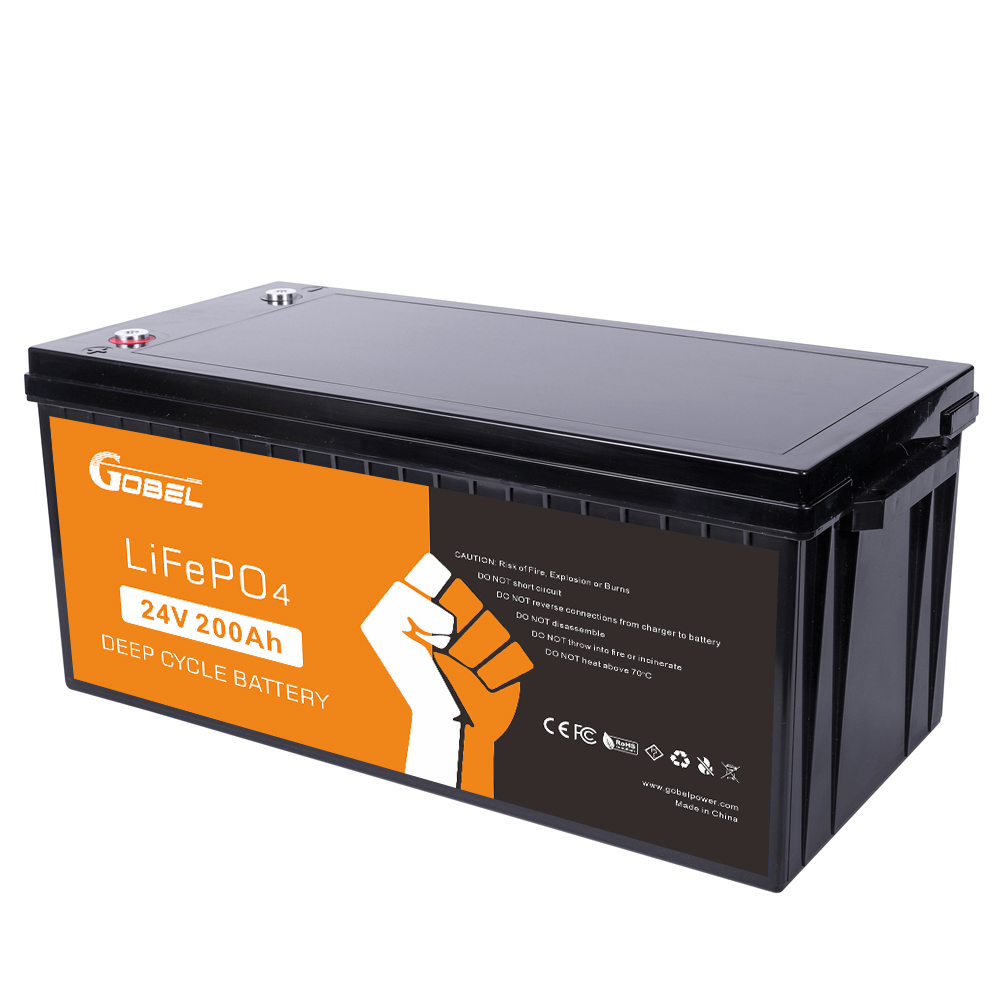

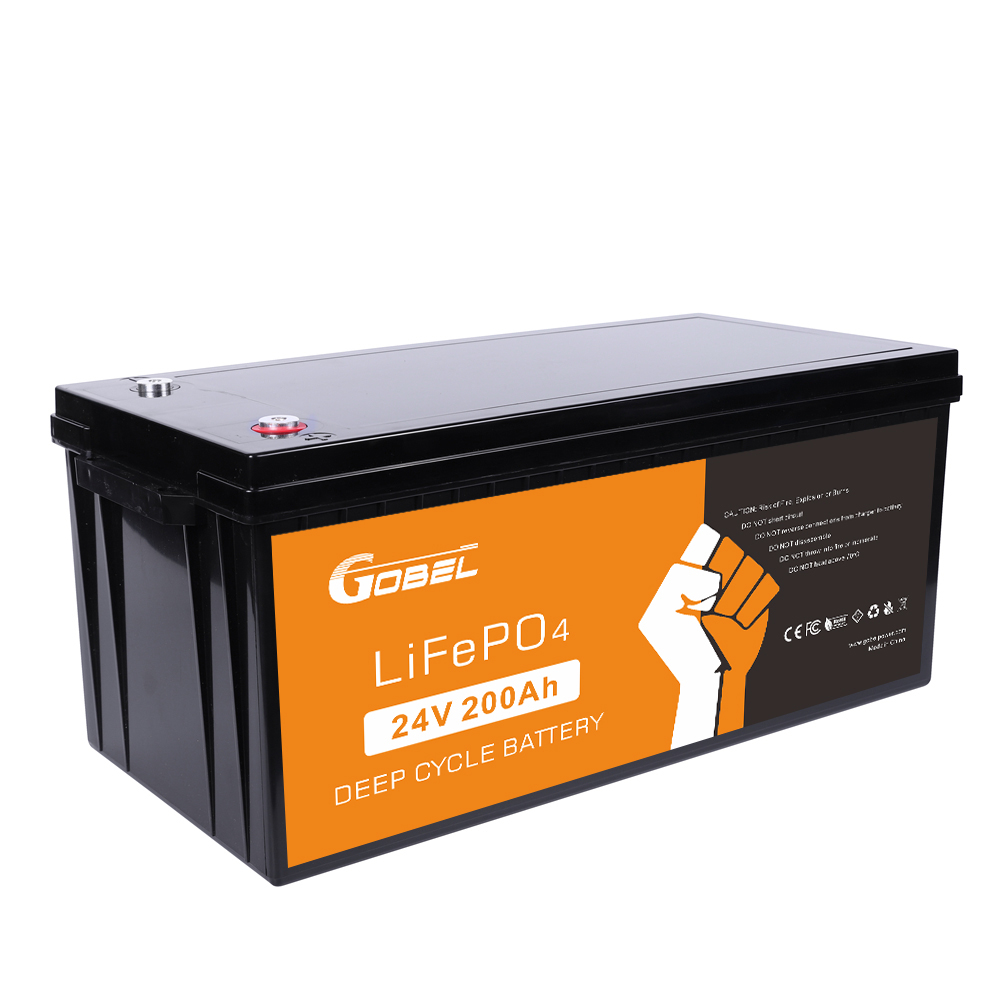

The Gobel Power LFP25.6-200 provides a massive 5.12kWh energy capacity in a single battery pack, serving as a seamless drop-in replacement for bulky lead-acid battery banks with only ~40% of the weight.
Native 25.6V High Capacity: Provides 200Ah capacity in a 25.6V configuration (3.2V 50Ah cells in 8S4P) to easily power heavy loads.
High Power Discharge: Supports 150A continuous discharge and up to 450A pulse discharge (<3s) to handle high-surge inverter loads.
Superior Energy Efficiency: Delivers exceptional 96%~99% discharge efficiency at 1C discharge rate for maximum power conversion.
Features a robust 8S 150A internal Battery Management System (BMS) that monitors cell conditions and offers flexible expansion options for larger energy storage systems.
Built-in 8S 150A BMS: Protects against overcharging, over-discharging, over-current, short circuit, and temperature extremes.
Series & Parallel Flexibility: Supports expansion up to 4 batteries in series and up to 10 batteries in parallel to build high-capacity battery banks.
Low Self-Discharge: Maintains high charge retention with monthly self-discharge lower than 3%, ideal for seasonal or emergency backup.
Built with advanced Lithium Iron Phosphate (LiFePO4) cell technology, providing exceptional lifespan and safety performance over traditional battery chemistry.
4,000+ Cycle Lifespan: Delivers >4000 cycles @ 1C 100% DOD, offering up to 20x longer cycle life than traditional lead-acid batteries.
Superior Safety Standard: Flame-retardant ABS case and LiFePO4 chemistry eliminate risks of explosion or combustion due to impact, short circuit, or overcharging.
Wide Temperature Operation: Performs reliably across a wide operating range (-20°C to 60°C discharge).
An ideal power source across a wide range of mobile, commercial, and off-grid power solutions.
Solar & Wind Storage: Seamlessly integrates with off-grid and hybrid solar inverters for home energy storage and power backup.
EV & Electric Mobility: Excellent high-power energy solution for electric mobility, utility vehicles, and marine setups.
Telecom & UPS Systems: Reliable back-up power supply for telecommunications towers, UPS systems, lighting, and medical equipment.
| Product Model | Gobel Power LFP25.6-200 (25.6V 200Ah) |
| Nominal Energy / Capacity | 5.12 kWh (5120Wh) / 200Ah (C5, 25°C) |
| Nominal Voltage / Operating Range | 25.6 VDC (20.0V – 29.2V) |
| Cell Combination & Chemistry | 3.2V 50Ah (8S4P) | Lithium Iron Phosphate (LiFePO4) |
| Standard & Max Charge Current | 40A Standard / 150A Max Charge Current |
| Continuous & Max Discharge Current | 150A Continuous / 450A Pulse (<3s) |
| Internal Resistance & Efficiency | <200mΩ | Discharge Efficiency 96~99% @1C |
| Cycle Life & Self Discharge | >4,000 Cycles @ 1C 100% DOD | Self Discharge<3%/month |
| Integrated BMS & Terminal | 8S 150A Internal BMS | M8 Terminal Bolts |
| Case Material & Dimensions | ABS Plastic Case | 522 × 268 × 218 mm (Weight: 36 kg) |
| Operating Temperature Range | Charge: 0°C to 45°C | Discharge: -20°C to 60°C |
Experience high reliability, long cycle life, and scalable power with the LFP25.6-200 LiFePO4 battery. Contact the Gobel Power team today for volume pricing and technical support.
