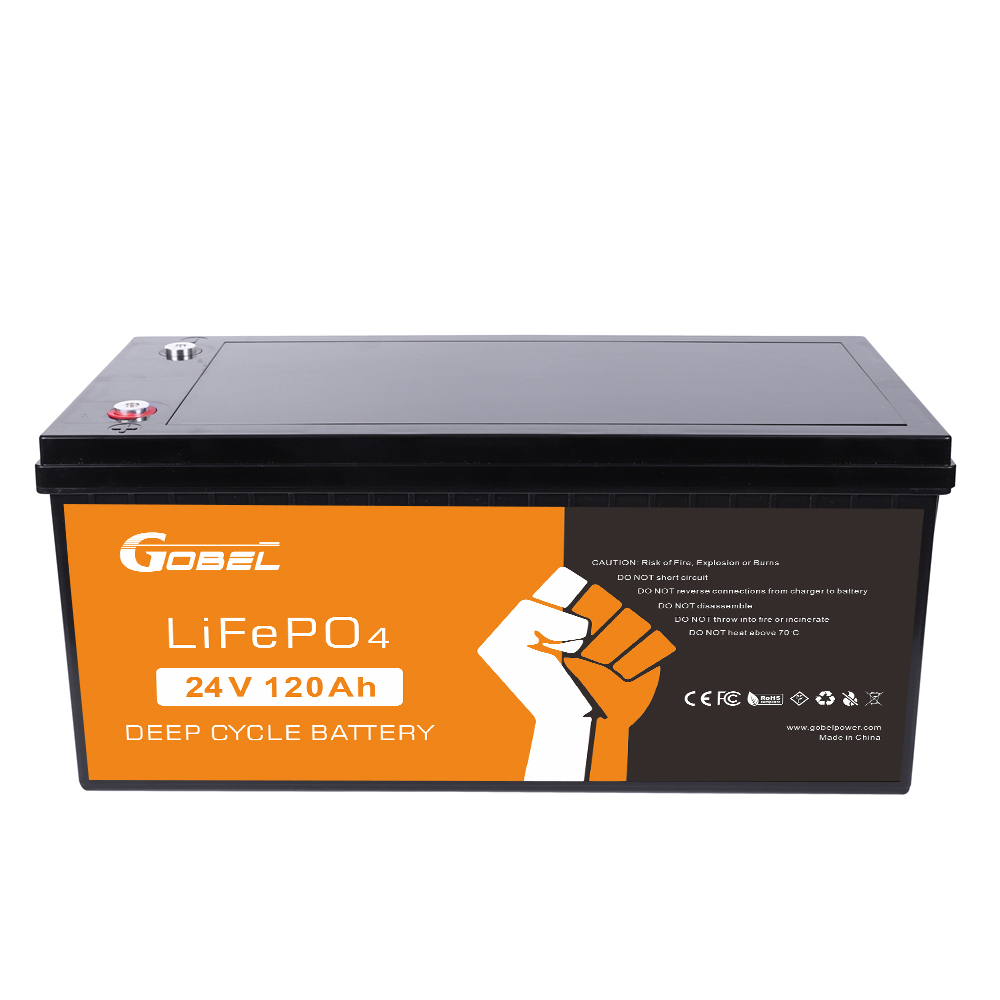

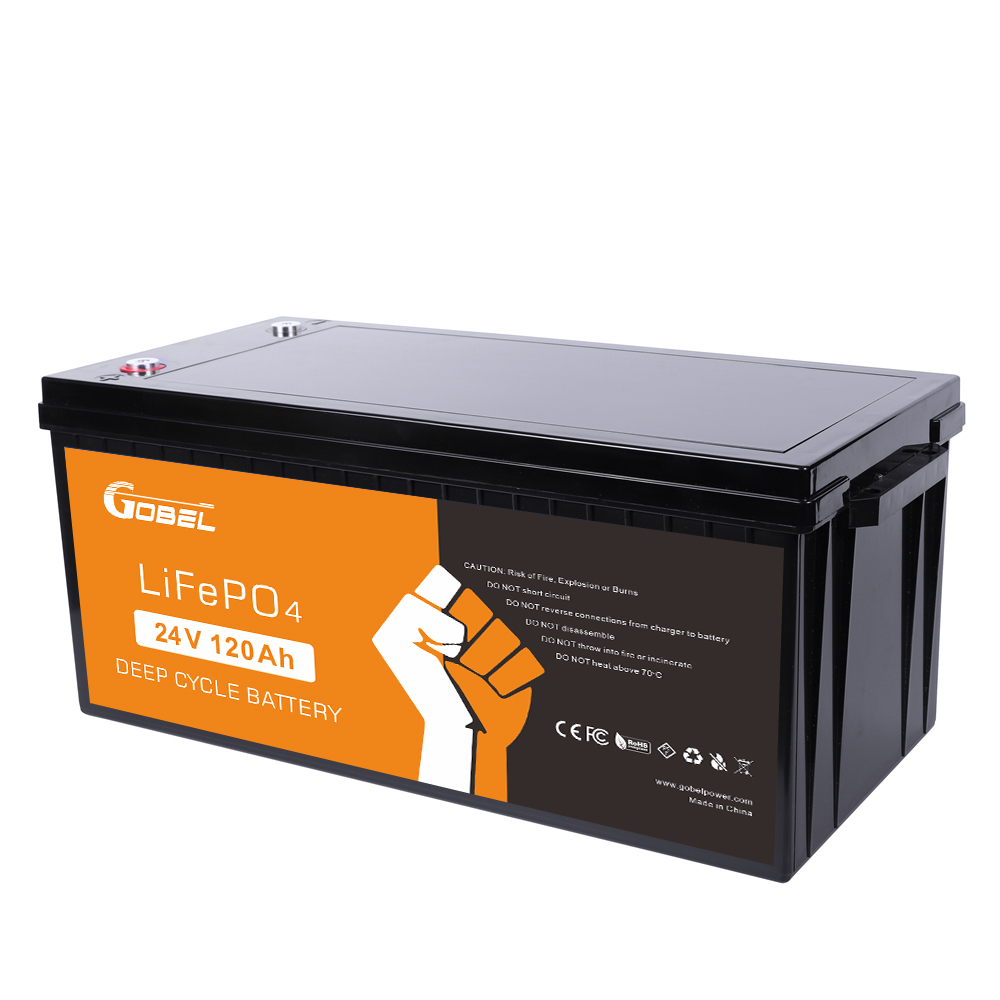

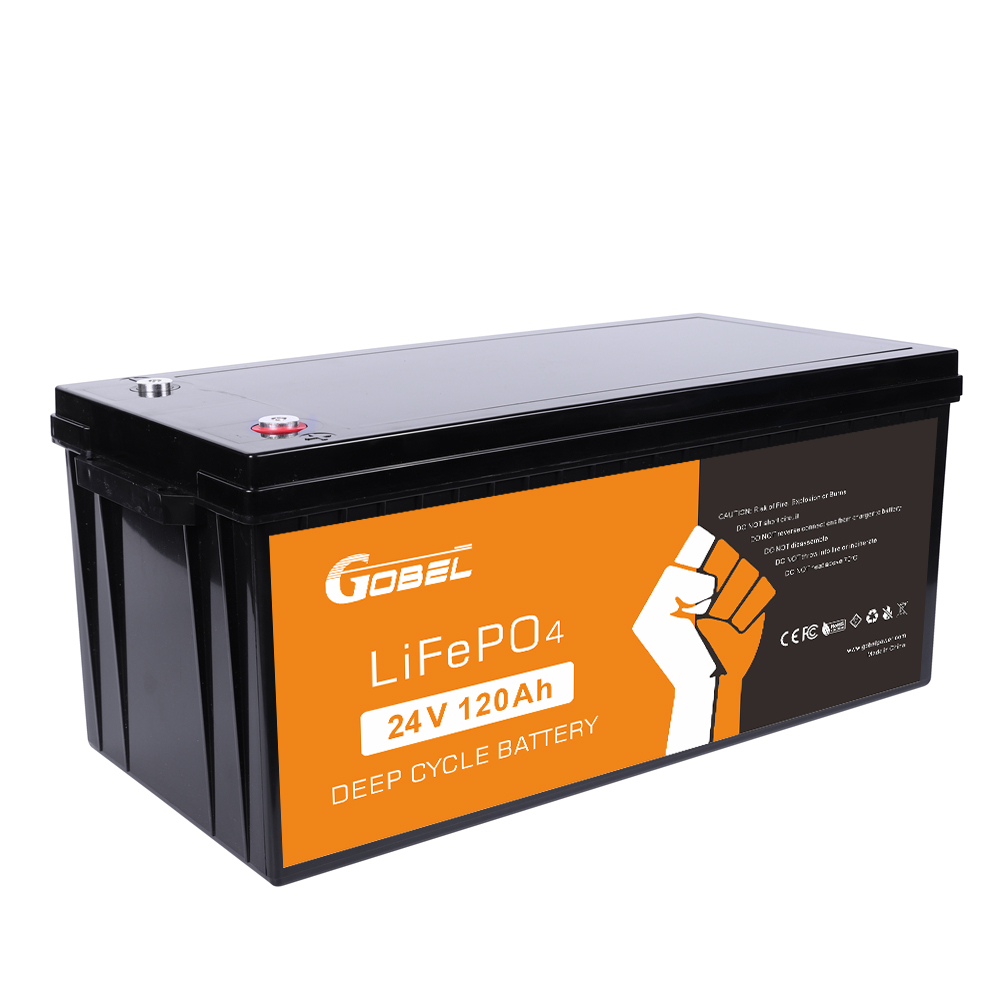

Gobel Power GP-24120 Pacco batteria LiFePO4 25,6 V 120 Ah 3,07 kWh - Batteria solare a ciclo profondo con BMS integrato, custodia in ABS, oltre 4000 cicli per camper, nautica, solare off-grid
Gobel Power GP-24120 Pacco batteria LiFePO4 25,6 V 120 Ah 3,07 kWh - Batteria solare a ciclo profondo con BMS integrato, custodia in ABS, oltre 4000 cicli per camper, nautica, solare off-grid
Gobel Power GP-24120 Pacco batteria LiFePO4 25,6 V 120 Ah 3,07 kWh - Batteria solare a ciclo profondo con BMS integrato, custodia in ABS, oltre 4000 cicli per camper, nautica, solare off-grid
Gobel Power GP-24120 Pacco batteria LiFePO4 25,6 V 120 Ah 3,07 kWh - Batteria solare a ciclo profondo con BMS integrato, custodia in ABS, oltre 4000 cicli per camper, nautica, solare off-grid
Gobel Power GP-24120 Pacco batteria LiFePO4 25,6 V 120 Ah 3,07 kWh - Batteria solare a ciclo profondo con BMS integrato, custodia in ABS, oltre 4000 cicli per camper, nautica, solare off-grid
Gobel Power GP-24120 Pacco batteria LiFePO4 25,6 V 120 Ah 3,07 kWh - Batteria solare a ciclo profondo con BMS integrato, custodia in ABS, oltre 4000 cicli per camper, nautica, solare off-grid
Gobel Power GP-24120 Pacco batteria LiFePO4 25,6 V 120 Ah 3,07 kWh - Batteria solare a ciclo profondo con BMS integrato, custodia in ABS, oltre 4000 cicli per camper, nautica, solare off-grid
Gobel Power GP-24120 Pacco batteria LiFePO4 25,6 V 120 Ah 3,07 kWh - Batteria solare a ciclo profondo con BMS integrato, custodia in ABS, oltre 4000 cicli per camper, nautica, solare off-grid
Numero di modello:
GP-24120
Materiale della custodia:
ABS
Capacità Nominale:
120 Ah
Tensione nominale:
25,6 V
Misurare:
522*240*218mm
Peso:
28 kg
Temperatura di lavoro:
-20~70℃
Contattaci
Scarica
Descrizione del prodotto
  Gobel Power GP-24120 · 25.6V 120Ah 3.07kWh

GP-24120 25.6V 120Ah 3.07kWh Deep Cycle LiFePO4 Battery

Engineered for high-reliability 24V energy storage with a durable ABS enclosure, premium cobalt-free LiFePO4 cells, and an integrated smart BMS[cite: 4]. Delivering a continuous 3.07kWh energy capacity for RV, marine, trolling motor, and off-grid solar energy storage systems[cite: 4].

3.07 kWhUsable Energy25.6V / 120AhVoltage & Capacity100AMax Discharge4,000+Cycle Lifespan
High Capacity & Energy Density

3.07kWh 24V Native Output in a Compact 28kg Design

The Gobel Power GP-24120 provides a native 25.6V nominal voltage output, making it the perfect upgrade for 24V solar inverters and marine trolling motors without needing complex series connections[cite: 4].

  • Native 25.6V System: Eliminates the imbalance risks of stringing two 12V batteries in series, improving system stability and efficiency[cite: 4].

  • High Round-Trip Efficiency: High energy conversion rate (≥90%) ensures minimal power loss during charging and discharging[cite: 4].

  • Durable ABS Case: Sealed flame-retardant ABS housing provides rugged protection against vibration and moisture in outdoor environments[cite: 4].

Built-in Intelligent BMS & Comprehensive Safety Testing

Equipped with an advanced internal Battery Management System (BMS) that monitors cell status in real time to prevent overcharging, over-discharging, and current surges[cite: 4].

  • Automated Protection: Safeguards cells against overvoltage (3.8V±30mV), undervoltage (2.3V±80mV), short circuit, and thermal anomalies[cite: 4].

  • Continuous 100A Rating: Supports continuous 100A charging and 100A discharging to easily power 2000W+ inverters and high-power appliances[cite: 4].

  • Strict Safety Testing: Verified through drop, short-circuit, crush, thermal runaway, and low-pressure testing with zero explosion or fire risk[cite: 4].

Long Service Lifespan with 4,000+ Deep Cycles

Engineered with premium LiFePO4 cell chemistry that far outlasts lead-acid batteries, delivering long-term cost-efficiency for off-grid power systems[cite: 4].

  • 4,000+ Cycle Life: Retains 80% nominal capacity after 4,000 deep cycles, offering over 10 years of reliable daily operation[cite: 4].

  • Low Self-Discharge: Maintains energy retention ≥90% during storage, minimizing capacity loss when idling[cite: 4].

  • Wide Working Temperature: Delivers robust discharge performance from -20°C up to 60°C in demanding outdoor conditions[cite: 4].

Versatile Applications for 24V Off-Grid & Mobile Power Systems

Ideal for 24V battery bank applications across RVs, marine vessels, solar storage, and back-up power solutions[cite: 4].

  • 24V RV & Marine Setup: Power high-efficiency 24V air conditioners, refrigeration, and electronics in motorhomes and boats[cite: 4].

  • 24V Trolling Motors: Direct plug-and-play power supply for 24V electric trolling motors and marine electronics[cite: 4].

  • Off-Grid Solar Storage: Ideal house battery bank for 24V off-grid solar cabins, remote telecommunications, and emergency back-up[cite: 4].

Technical Specifications

Product Model Gobel Power GP-24120[cite: 4]
Nominal Energy / Usable Capacity 3.07 kWh[cite: 4]
Nominal Voltage / Operating Range 25.6 VDC (20.0V – 28.4V)[cite: 4]
Nominal Capacity & Cell Type 120Ah LiFePO4 (Lithium Iron Phosphate)[cite: 4]
Max Continuous Charge Current 100A[cite: 4]
Max Continuous Discharge Current 100A[cite: 4]
Internal Resistance<80 mΩ (AC at 1000Hz)[cite: 4]
Cycle Life & Energy Efficiency ≥4,000 Cycles @ 80% DOD | ≥90% Energy Efficiency[cite: 4]
Enclosure Material & Dimensions ABS Case | 522mm x 240mm x 218mm (Weight: 28kg)[cite: 4]
Operating Temperature Range Charge: 0°C to 55°C | Discharge: -20°C to 60°C[cite: 4]
Warranty Support 2 Years Manufacturer Warranty[cite: 4]

Upgrade Your 24V System with 3.07kWh Deep Cycle Power

Take full control of your power independence with the GP-24120 battery[cite: 4]. Contact the Gobel Power team today for bulk quotes, shipping assistance, and system integration support.
