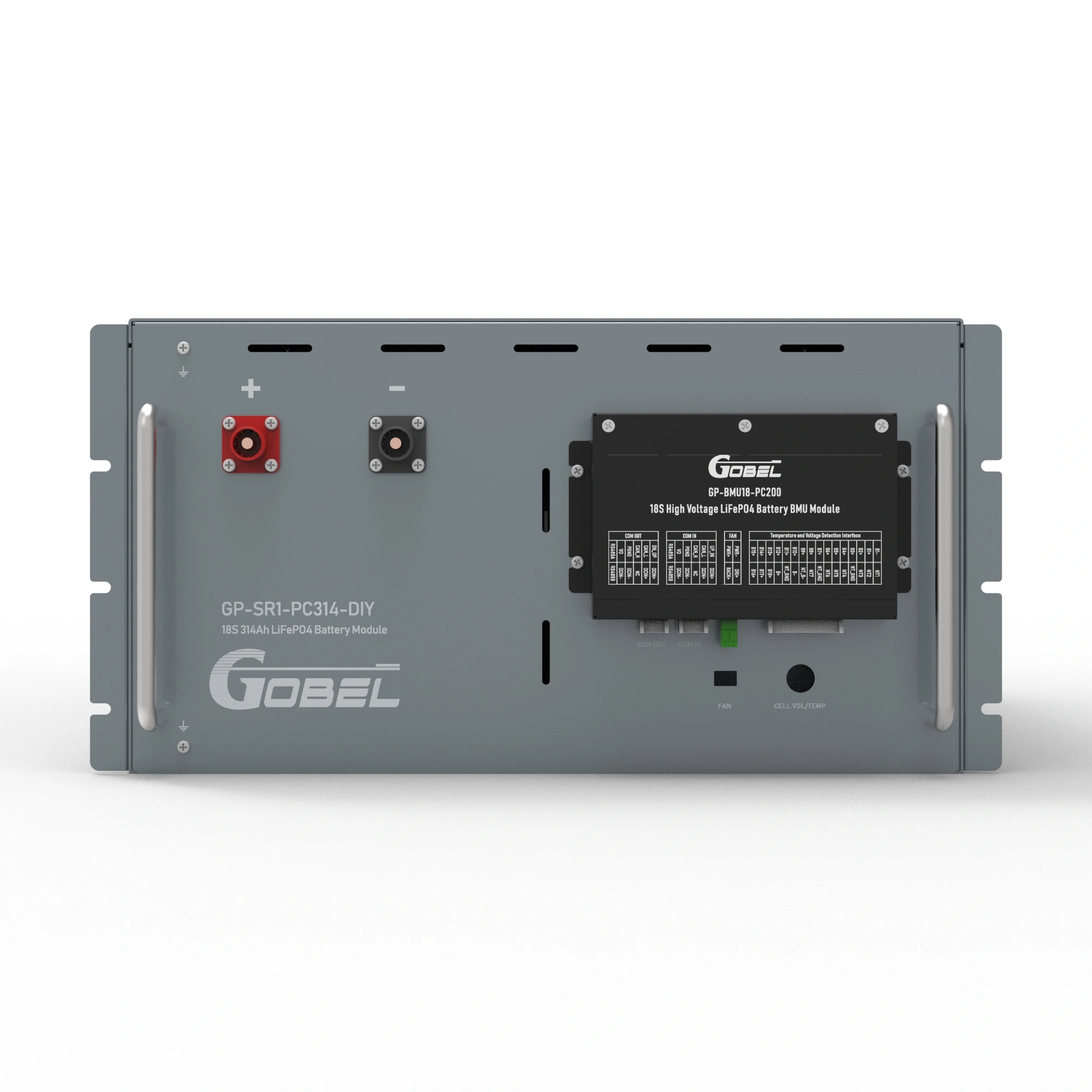

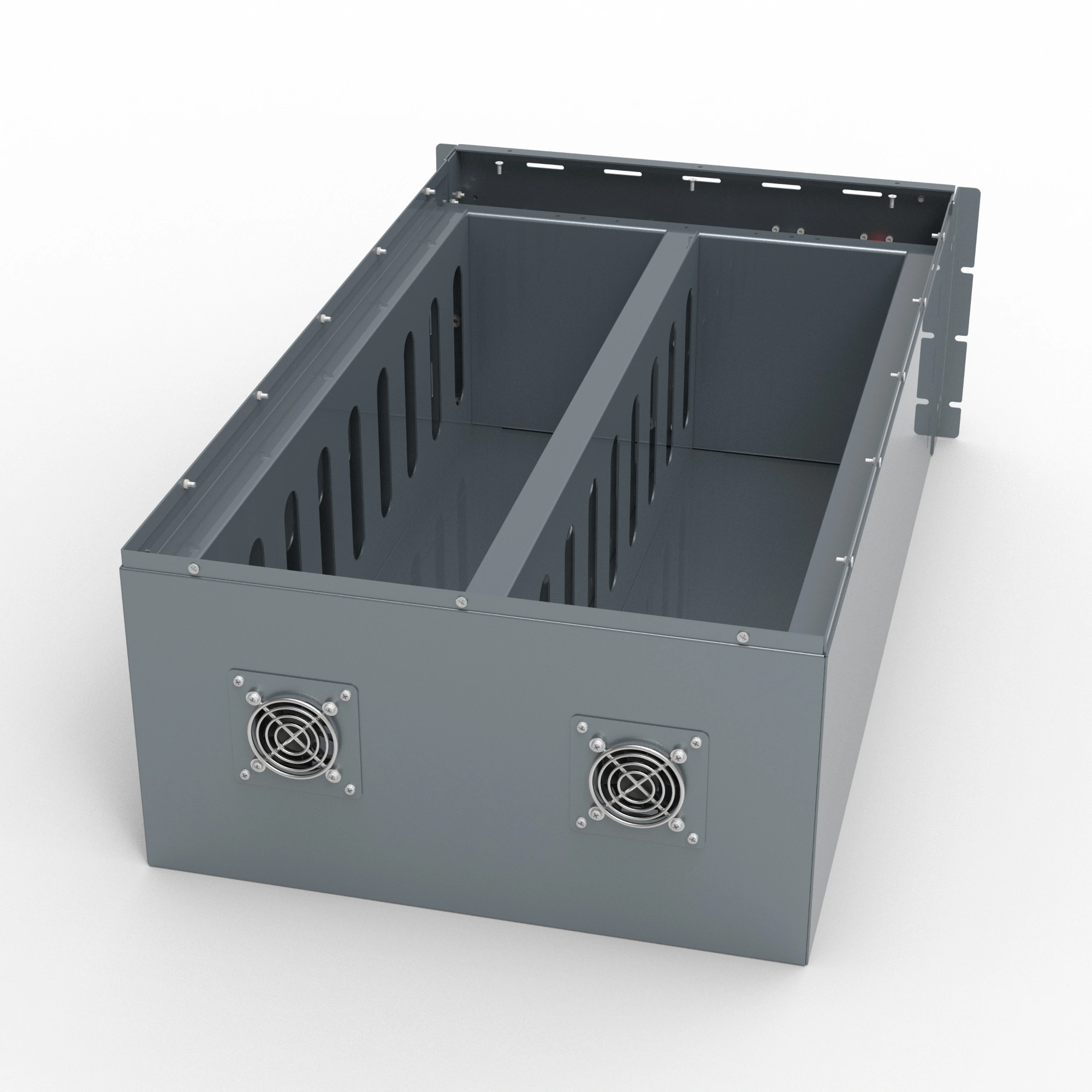

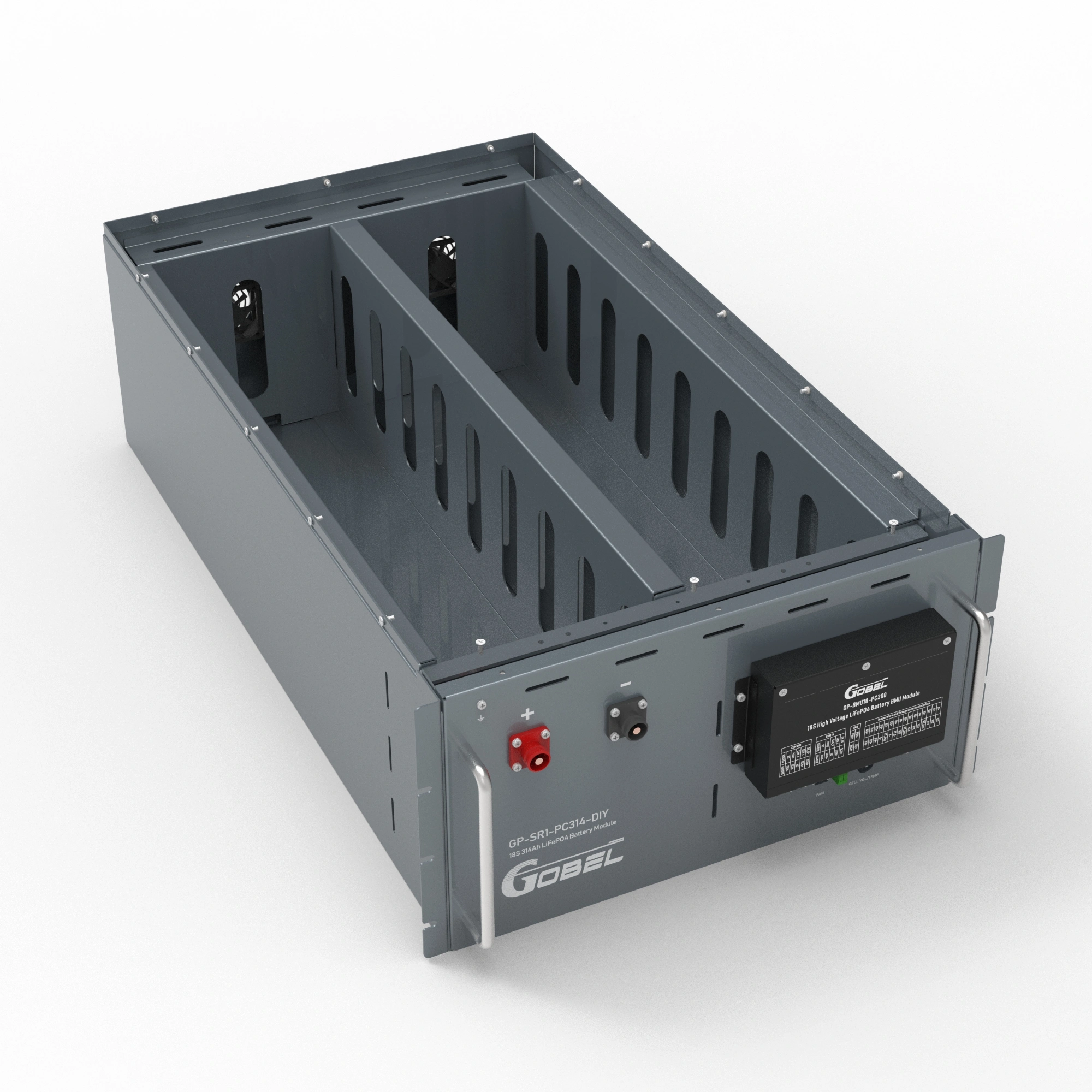

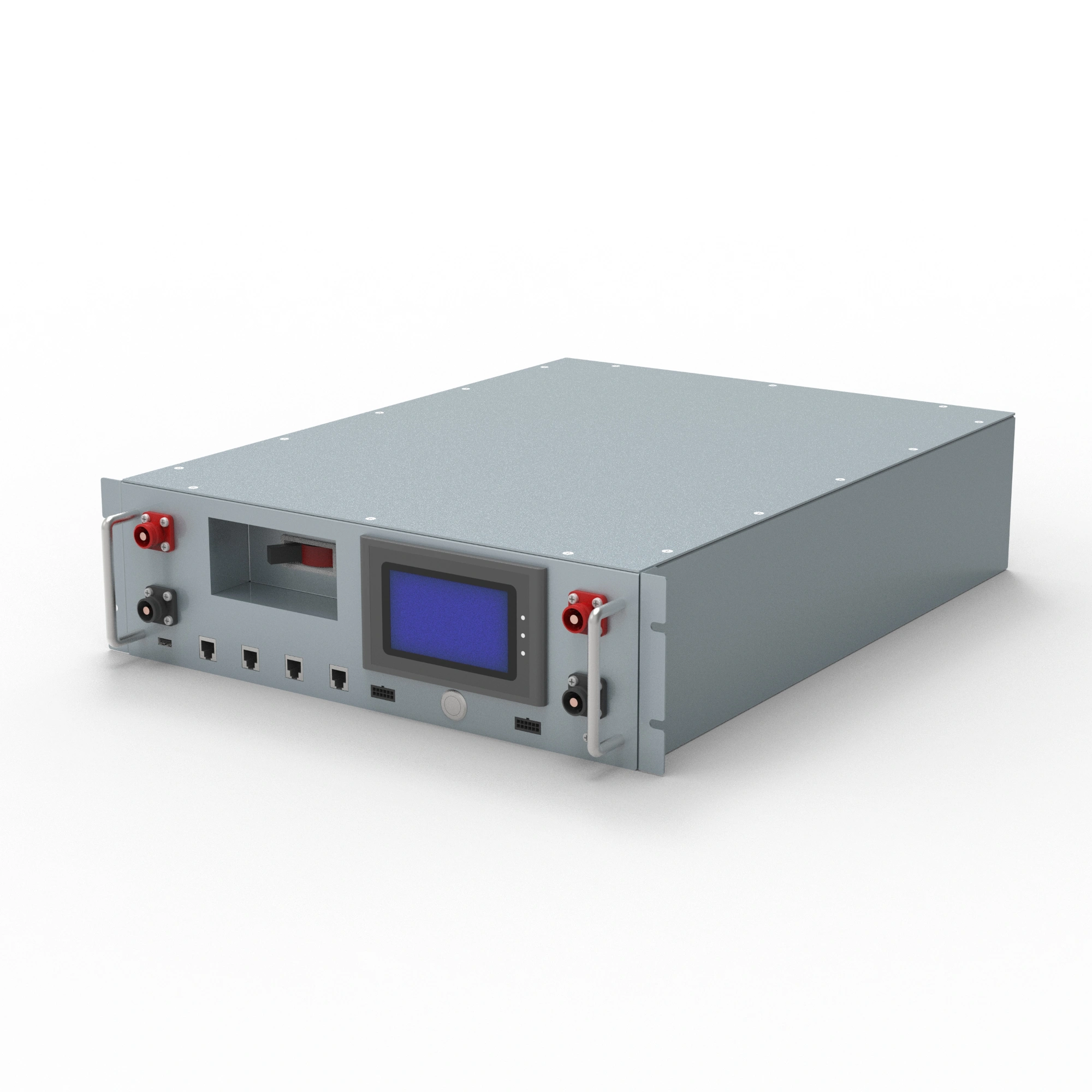

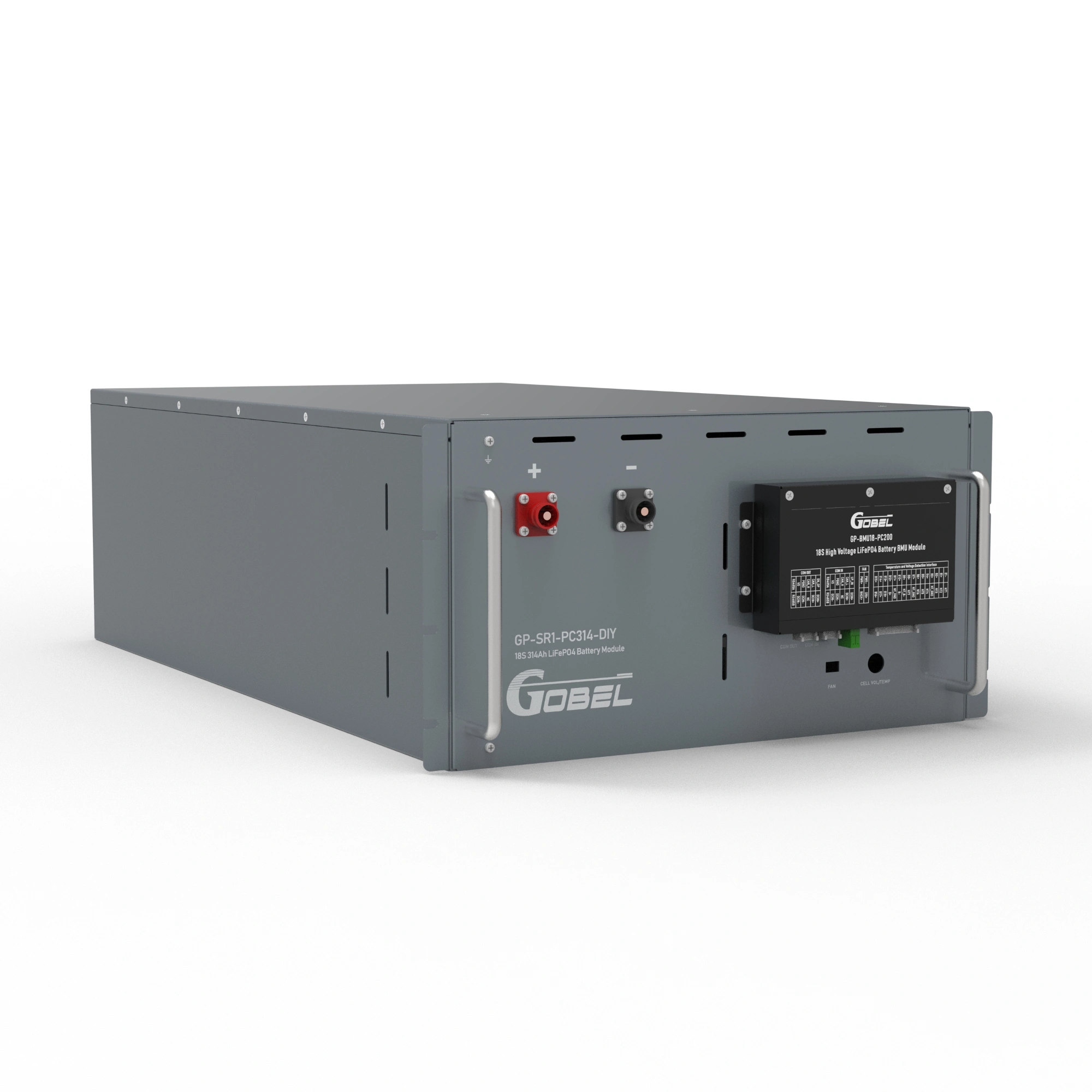

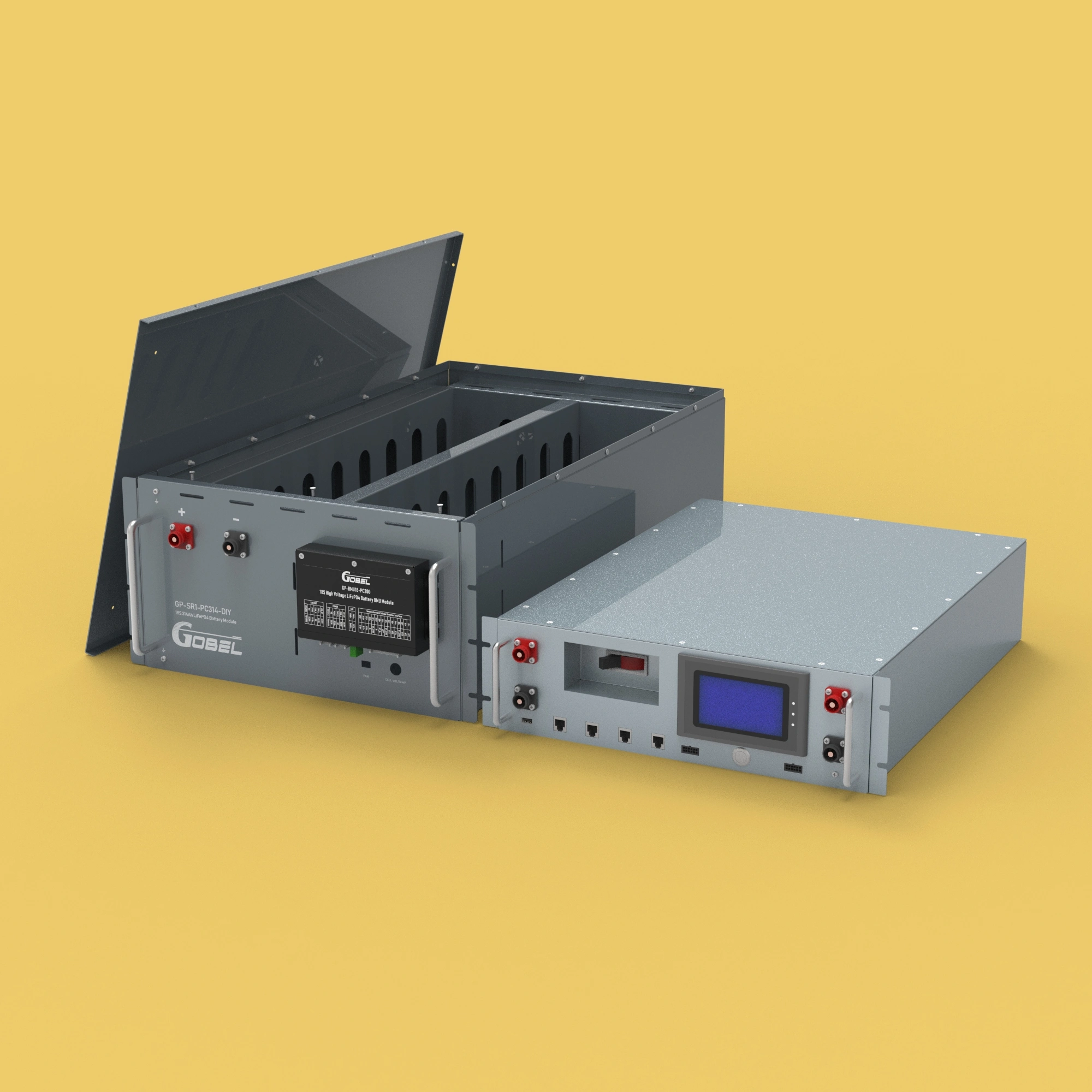

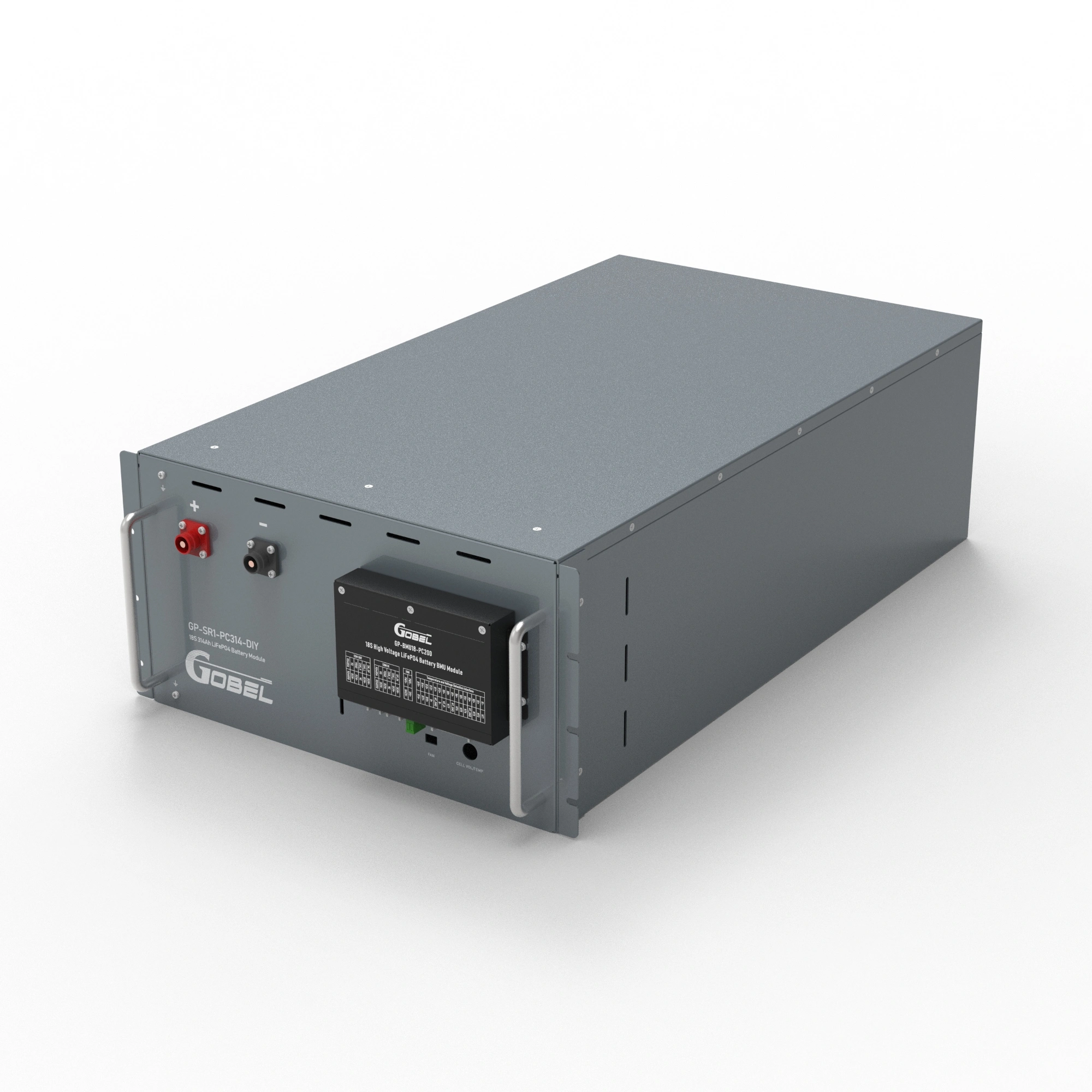

Gobel Power High-Voltage LiFePO₄ BESS for Industrial and Commercial Applications

Product Model:
GP-SRA-HV314
Cell type:
LFP 3.2V/314Ah
Pack type:
1P18S/18kWh
Battery Voltage range:
DC 225V ~ DC 985V
Battery system capacity:
90kWh ~ 271kWh
IP rating:
IP21
Communication method:
CAN /RS485
EU & US Local Warehouses
Fast DDP delivery in 3-7 days
Up to 10-Year Warranty
Industry-leading coverage, 6000+ cycles
Certified Safety
CE / UN38.3 / MSDS certified
Product Introduction
Gobel Power Industrial & Commercial High-Voltage BESS

High-Voltage LiFePO4 Energy Storage System for Commercial & Industrial (C&I)

Engineered for factories, commercial complexes, and microgrids. Featuring high-voltage architecture (200V–800V+), Grade-A LiFePO4 cells, and multi-tier BMS safety to maximize peak-shaving savings and emergency backup reliability.

200V–800V+High Voltage PlatformMWh-LevelScalable Expansion3-Tier BMSIndustrial Protection8,000+Cycle Lifespan
High-Efficiency Architecture

High-Voltage Bus Architecture: Reduced Heat, Higher Conversion Efficiency

Operating at elevated voltage levels (200V–800V+) reduces system current, drastically lowering I²R line losses, cable costs, and PCS conversion overhead in medium-to-large C&I deployments.

  • Lower System Losses: Reduced operating current minimizes thermal generation and maximizes AC-to-AC round-trip efficiency.

  • Simplified Wiring & BOS: Thinner cabling and streamlined balance-of-system (BOS) components lower installation costs.

  • Optimized PCS Integration: Direct pairing with central or string C&I high-voltage inverters.

Modular Scalability for Commercial & Industrial Operations

Designed for high adaptability, our HV BESS solution scales smoothly from cabinet-style systems (100kWh–300kWh) to multi-MWh containerized solutions.

  • Peak Shaving & Demand Management: Charge during off-peak rate hours and discharge during peak tariff slots to drastically cut utility bills.

  • Solar PV & Microgrid Integration: Smooth out renewable generation intermittency and guarantee continuous facility operation during grid outages.

  • Flexible Rack & Container Design: Available in outdoor all-in-one cabinets or 20ft/40ft modular ISO containerized configurations.

3-Tier Industrial BMS Architecture & Multi-Level Safety

Industrial energy storage demands uncompromising safety. The system incorporates cell-, rack-, and system-level management paired with advanced thermal and fire mitigation.

  • 3-Tier Intelligent BMS: BMU (Cell Level), BCU (Rack Level), and BAMS (System Level) for continuous monitoring and balancing.

  • Integrated Thermal Management: Air or liquid cooling options ensure uniform cell operating temperatures for extended lifespan.

  • Multi-Layer Fire Suppression: Dedicated gas/aerosol fire suppression and smoke/combustible gas detection per rack/container.

Grade-A LiFePO4 Reliability & Long Service Life

Built with premium Grade-A LiFePO4 cells to ensure reliable 15+ year operational life under heavy daily cycling.

  • 8,000+ Cycle Life: High thermal stability and structural durability for demanding industrial load profiles.

  • High Return on Investment (ROI): Proven rapid payback through energy arbitrage and reduced peak demand charges.

Technical Specifications

Application Type Commercial & Industrial (C&I) BESS / Microgrid
Battery Chemistry Grade-A Prismatic LiFePO4
DC Voltage Range 200V – 800V+ (Configurable per string)
System Capacity 100kWh to Multi-MWh Solutions
BMS Protection Architecture 3-Tier (BMU / BCU / BAMS)
Communication Interfaces Modbus TCP / Modbus RTU / CAN Bus / Ethernet
Thermal & Safety Systems HVAC / Liquid Cooling + Aerosol/Gas Fire Suppression
Cycle Life ≥8,000 Cycles @ 80% DoD

Tailored High-Voltage Energy Storage for Your Facility

Reduce energy expenses and secure uninterrupted power for your business. Contact Gobel Power engineering team for custom high-voltage BESS sizing, single-line diagrams (SLD), and turnkey project quotes.

Discuss your project

Battery FAQ

Frequently asked questions

View all Q&A
How many PowerThor 5000 batteries do I need for a solar backup system?
Each PowerThor 5000 module provides 5.12kWh nominal energy, so the required quantity depends on essential-load kWh, desired backup time and reserve for conversion losses and operating limits. Also verify the inverter battery-current limit and system protection; the product supports 16 parallel units as standard and up to 32 with supported firmware.
How does PowerThor 5000 communicate with a solar inverter?
PowerThor 5000 uses a JK-Inverter BMS with CAN configured for Victron Energy by default and RS485 configured for Growatt by default, plus Bluetooth for local commissioning. Always confirm the exact inverter model, cable pinout, protocol selection and firmware because a matching connector alone does not establish compatibility.
How much power can the PowerHarp 32 battery deliver?
PowerHarp 32 provides 32.15kWh nominal energy and 15.36kW continuous output, with a 20.5kW peak rating under the specified current and duration limits. Its 51.2V 628Ah architecture uses a 300A BMS, so cable sizing, isolation and fault protection must be engineered for the full system current.
Is PowerHarp 32 suitable for a large home or small business?
PowerHarp 32 can suit large residential, workshop and light-commercial energy profiles when 32.15kWh of storage and 15.36kW continuous output match the measured load. Use interval consumption data where possible and have a qualified designer plan the inverter, protection, conductors and any parallel battery bank.
Can PowerHarp 16 be used for whole-house battery backup?
PowerHarp 16 is designed for residential backup and provides 16.07kWh nominal energy, 7.68kW continuous output and 10.2kW peak output under the stated conditions. Whether it can support the entire home depends on the selected circuits, starting loads, inverter, transfer equipment and required backup duration.
What is the difference between PowerHarp 16 and PowerFable 16?
Both provide approximately 16.07kWh from a 51.2V 314Ah LiFePO4 pack, but their installation formats differ. PowerHarp 16 is an integrated floor-standing indoor cabinet, while PowerFable 16 uses a serviceable 19-inch 6U rack format that can be installed only in its approved rack, stacking or caster configuration.
