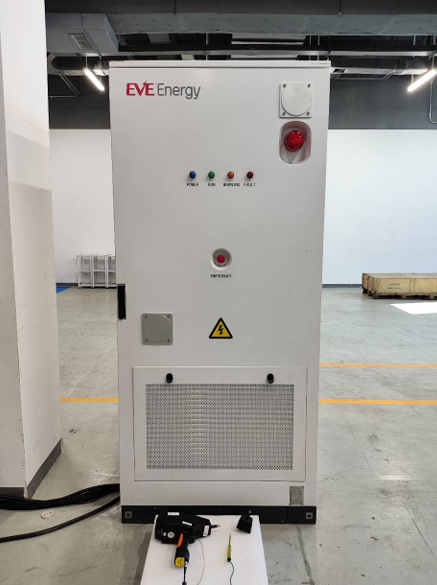

EVE 832V 261kWh 125kW Liquid Cooling Commercial & Industrial BESS | All-in-One Energy Storage System

Product Model:
T231H201
Cell type:
LFP 3.2V/314Ah
Pack type:
1P52S/52.25kWh
Battery Voltage range:
DC 728V ~ DC 949V
Battery system capacity:
261kWh
Cycle life:
≥8000 times@25±3℃,≥70%EOL
Dimensions (L*W*H):
1020mm×1470mm×2250mm
EU & US Local Warehouses
Fast DDP delivery in 3-7 days
Up to 10-Year Warranty
Industry-leading coverage, 6000+ cycles
Certified Safety
CE / UN38.3 / MSDS certified
Product Introduction
Gobel Power Commercial BESS · 832V 261kWh 125kW Liquid Cooling Storage System

Next-Gen Commercial Energy Storage.
Powered by Advanced Liquid Cooling.

High-density 832V 261kWh LiFePO4 battery cabinet paired with an integrated 125kW liquid-cooled PCS. Built for commercial peak shaving, demand management, microgrids, and solar integration with maximum thermal efficiency.

261 kWh
System Capacity
125 kW
PCS Rated Power
832 V
Nominal Voltage
Liquid
Thermal Management
Advanced Thermal Control

Precision Liquid Cooling for Maximum Cycle Life

The EVE 832V 261kWh system replaces conventional HVAC air cooling with an integrated dual liquid-cooling loop for both battery packs and the PCS inverter. Intelligent flow management keeps cell-to-cell temperature variance within 3°C, reducing auxiliary power consumption and significantly extending long-term battery cycle life.

  • Uniform Temperature Distribution: Cell temperature difference controlled within ≤3°C

  • Dual Liquid Cooling: Dedicated liquid heat dissipation for both battery rack and PCS inverter

  • Higher System RTE: Lower parasitic energy consumption compared to forced-air systems

  • Extended Battery Life: Minimizes thermal degradation over 6,000+ heavy-duty cycles

High-Voltage Architecture

832V Platform Built for Commercial Power Densities

Operating at a nominal 832V DC platform, this system reduces cable losses and current pressure across internal components. Integrated with a 125kW liquid-cooled Power Conversion System (PCS), it supports 400V / 480V AC grid connections for fast response, high efficiency, and seamless grid synchronization.

  • 832V Nominal High-Voltage: Lower DC line resistance and higher total conversion efficiency

  • Integrated 125kW PCS: Bi-directional power conversion with rapid charge/discharge response

  • Flexible AC Grid Voltage: Supports 400V (AC -15% to +10%) / 480V commercial grid integration

  • Scalable Architecture: Modular design allows multi-cabinet parallel deployment for MW-scale projects

Safety & Reliability

Multi-Layered Protection & All-Weather Outdoor Enclosure

Safety is engineered at every layer. Premium EVE LiFePO4 chemistry eliminates intrinsic thermal risks, while three-tier BMS monitoring (BMU/BMS/EMS) continuously tracks system status. Built into an IP55 outdoor cabinet with automated fire detection and suppression, it stands up to harsh industrial environments.

  • Tiered BMS Protection: Real-time voltage, current, insulation, and multi-point temperature tracking

  • Active Fire Suppression: Aerosol / Gas fire protection combined with water pipe backups

  • IP55 Heavy-Duty Enclosure: Designed for outdoor installation in rugged environmental conditions

  • Proven Cell Quality: High-grade EVE prismatic LiFePO4 cells with superior thermal stability

Engineered for High-ROI Commercial Use Cases

Maximize energy savings, lower utility demand charges, and secure reliable backup power for your enterprise.

Commercial Peak Shaving      Factory & Industrial Energy Storage      Solar & Wind Integration      EV Charging Hub Buffer      Microgrid & Emergency Backup Power

Technical Specifications

Product ModelEVE 832V 261kWh 125kW BESS Liquid Cooling System
Nominal Energy Capacity261 kWh
Rated PCS Power125 kW
Nominal DC Voltage832 V
AC Output Voltage400V (-15% ~ +10%) / 480V 3-Phase
Thermal ManagementDual Liquid Cooling System (Battery & PCS)
Battery ChemistryEVE Prismatic LiFePO4 (Lithium Iron Phosphate)
Ingress Protection RatingIP55 Outdoor Cabinet
Fire ProtectionAerosol / Gas Fire Suppression + Pack-level sensing
Communication ProtocolEthernet / Modbus TCP / RS485 / CAN

Empower your enterprise with liquid-cooled reliability.

Get maximum energy density, longer battery lifespan, and safer operations for your commercial projects. Contact Gobel Power today for custom BESS sizing, multi-cabinet system architecture, and direct factory pricing.

832V Platform · 261kWh · 125kW PCS · Dual Liquid Cooling · IP55 Enclosure · Gobel Power Engineering Support
