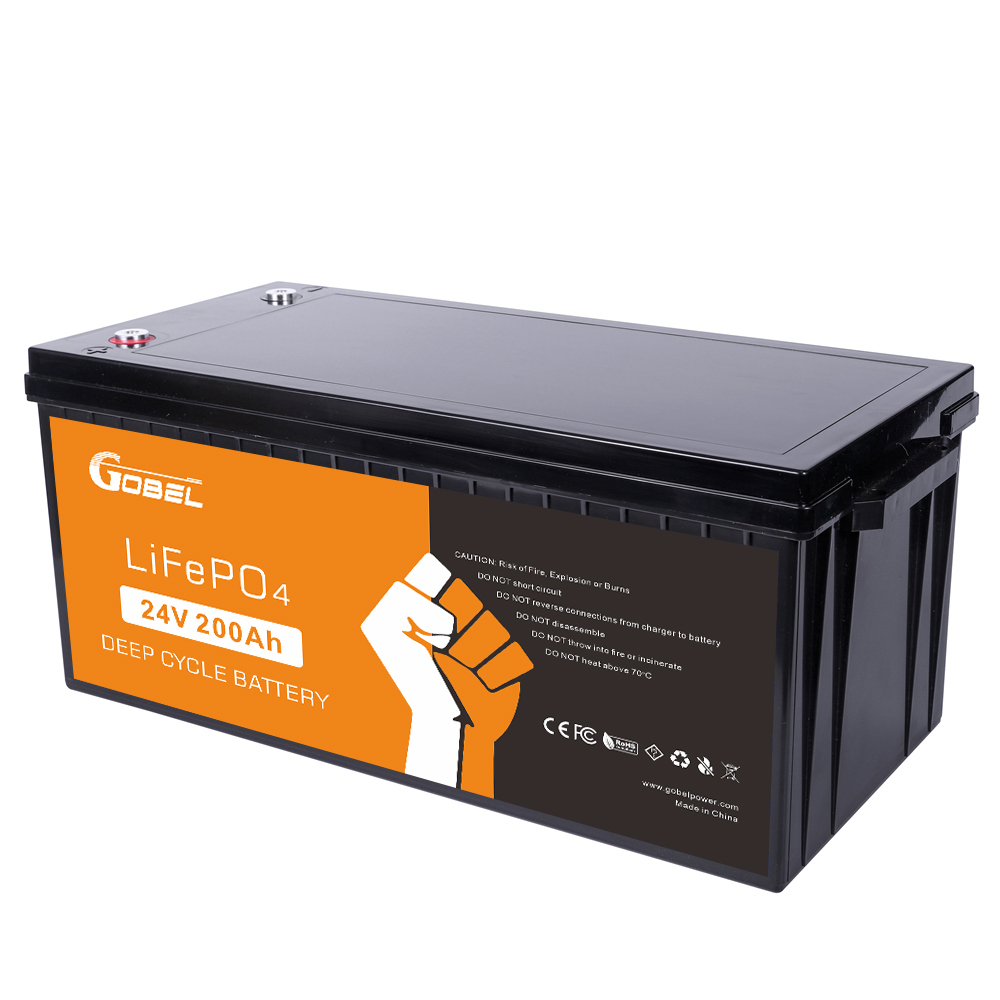

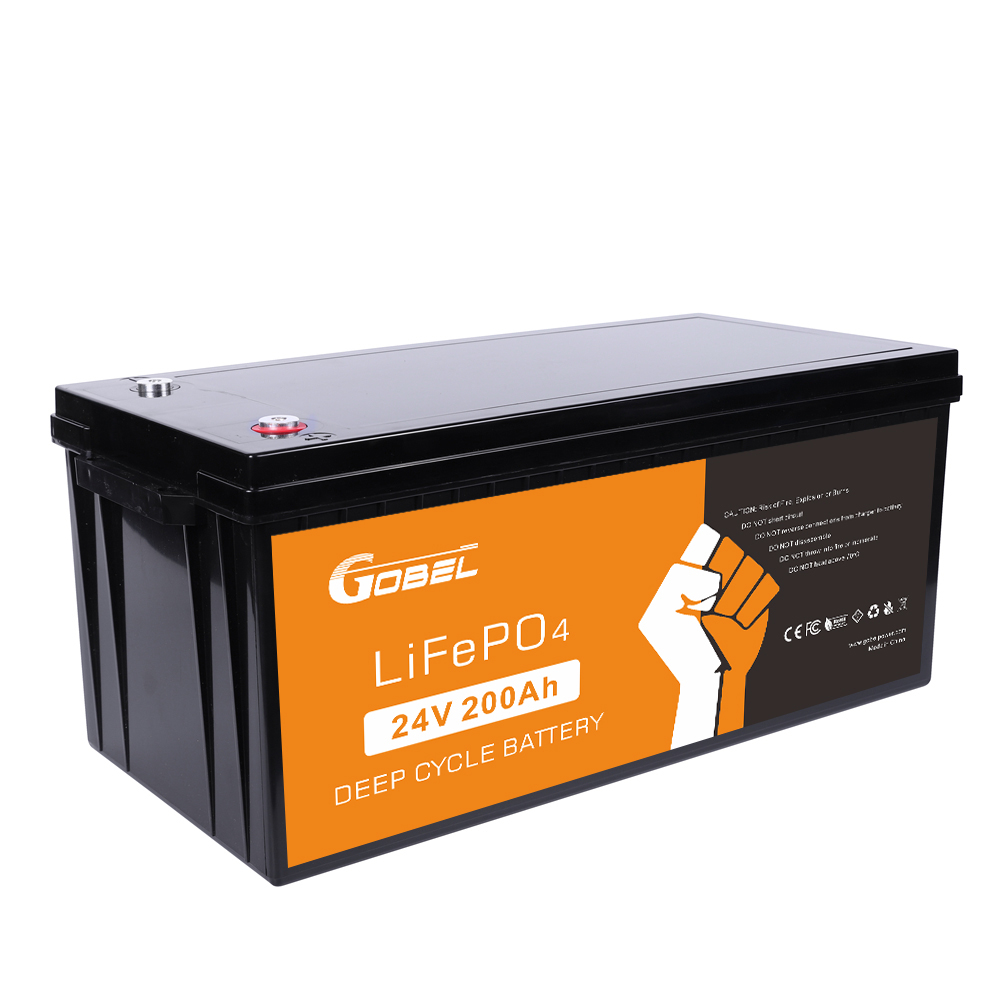

Gobel Power LFP25.6-200 25.6V 200Ah 5.12kWh LiFePO4 Battery Pack - Built-in 150A BMS, 4000+ Cycles, Modular Scalable Deep Cycle Solar Battery for Off-Grid, RV, Marine & Backup Power

Model Number:
GP-24200
Case Material:
ABS
Nominal Capacity:
200Ah
Nominal Voltage:
25.6V
Size:
522*268*218 mm
Weight:
36kg
Energy:
5120Wh
EU & US Local Warehouses
Fast DDP delivery in 3-7 days
Up to 10-Year Warranty
Industry-leading coverage, 6000+ cycles
Certified Safety
CE / UN38.3 / MSDS certified
Product Introduction
  Gobel Power LFP25.6-200 · 25.6V 200Ah 5.12kWh

LFP25.6-200 25.6V 200Ah 5.12kWh Deep Cycle LiFePO4 Battery

Delivering high-capacity 5.12kWh energy storage with an integrated 8S 150A BMS and durable ABS enclosure. Designed as a lightweight drop-in lead-acid replacement with high power output and extended cycle life for RVs, marine, telecom, and off-grid solar systems.

5.12 kWhNominal Energy25.6V / 200AhVoltage & Capacity150A / 450ACont. / Pulse Discharge4,000+Cycles @ 100% DOD
High Capacity & Drop-in Replacement

5.12kWh Energy Capacity in a Compact 36kg Design

The Gobel Power LFP25.6-200 provides a massive 5.12kWh energy capacity in a single battery pack, serving as a seamless drop-in replacement for bulky lead-acid battery banks with only ~40% of the weight.

  • Native 25.6V High Capacity: Provides 200Ah capacity in a 25.6V configuration (3.2V 50Ah cells in 8S4P) to easily power heavy loads.

  • High Power Discharge: Supports 150A continuous discharge and up to 450A pulse discharge (<3s) to handle high-surge inverter loads.

  • Superior Energy Efficiency: Delivers exceptional 96%~99% discharge efficiency at 1C discharge rate for maximum power conversion.

Integrated 8S 150A BMS & Flexible Modular Scalability

Features a robust 8S 150A internal Battery Management System (BMS) that monitors cell conditions and offers flexible expansion options for larger energy storage systems.

  • Built-in 8S 150A BMS: Protects against overcharging, over-discharging, over-current, short circuit, and temperature extremes.

  • Series & Parallel Flexibility: Supports expansion up to 4 batteries in series and up to 10 batteries in parallel to build high-capacity battery banks.

  • Low Self-Discharge: Maintains high charge retention with monthly self-discharge lower than 3%, ideal for seasonal or emergency backup.

4,000+ Deep Cycles & Inherently Safe Chemistry

Built with advanced Lithium Iron Phosphate (LiFePO4) cell technology, providing exceptional lifespan and safety performance over traditional battery chemistry.

  • 4,000+ Cycle Lifespan: Delivers >4000 cycles @ 1C 100% DOD, offering up to 20x longer cycle life than traditional lead-acid batteries.

  • Superior Safety Standard: Flame-retardant ABS case and LiFePO4 chemistry eliminate risks of explosion or combustion due to impact, short circuit, or overcharging.

  • Wide Temperature Operation: Performs reliably across a wide operating range (-20°C to 60°C discharge).

Versatile Applications for Commercial & Residential Use

An ideal power source across a wide range of mobile, commercial, and off-grid power solutions.

  • Solar & Wind Storage: Seamlessly integrates with off-grid and hybrid solar inverters for home energy storage and power backup.

  • EV & Electric Mobility: Excellent high-power energy solution for electric mobility, utility vehicles, and marine setups.

  • Telecom & UPS Systems: Reliable back-up power supply for telecommunications towers, UPS systems, lighting, and medical equipment.

Technical Specifications

Product ModelGobel Power LFP25.6-200 (25.6V 200Ah)
Nominal Energy / Capacity5.12 kWh (5120Wh) / 200Ah (C5, 25°C)
Nominal Voltage / Operating Range25.6 VDC (20.0V – 29.2V)
Cell Combination & Chemistry3.2V 50Ah (8S4P) | Lithium Iron Phosphate (LiFePO4)
Standard & Max Charge Current40A Standard / 150A Max Charge Current
Continuous & Max Discharge Current150A Continuous / 450A Pulse (<3s)
Internal Resistance & Efficiency<200mΩ | Discharge Efficiency 96~99% @1C
Cycle Life & Self Discharge>4,000 Cycles @ 1C 100% DOD | Self Discharge<3%/month
Integrated BMS & Terminal8S 150A Internal BMS | M8 Terminal Bolts
Case Material & DimensionsABS Plastic Case | 522 × 268 × 218 mm (Weight: 36 kg)
Operating Temperature RangeCharge: 0°C to 45°C | Discharge: -20°C to 60°C

Upgrade Your Energy Storage System to 5.12kWh

Experience high reliability, long cycle life, and scalable power with the LFP25.6-200 LiFePO4 battery. Contact the Gobel Power team today for volume pricing and technical support.

Discuss your project

Battery FAQ

Frequently asked questions

View all Q&A
How many PowerThor 5000 batteries do I need for a solar backup system?
Each PowerThor 5000 module provides 5.12kWh nominal energy, so the required quantity depends on essential-load kWh, desired backup time and reserve for conversion losses and operating limits. Also verify the inverter battery-current limit and system protection; the product supports 16 parallel units as standard and up to 32 with supported firmware.
How does PowerThor 5000 communicate with a solar inverter?
PowerThor 5000 uses a JK-Inverter BMS with CAN configured for Victron Energy by default and RS485 configured for Growatt by default, plus Bluetooth for local commissioning. Always confirm the exact inverter model, cable pinout, protocol selection and firmware because a matching connector alone does not establish compatibility.
How much power can the PowerHarp 32 battery deliver?
PowerHarp 32 provides 32.15kWh nominal energy and 15.36kW continuous output, with a 20.5kW peak rating under the specified current and duration limits. Its 51.2V 628Ah architecture uses a 300A BMS, so cable sizing, isolation and fault protection must be engineered for the full system current.
Is PowerHarp 32 suitable for a large home or small business?
PowerHarp 32 can suit large residential, workshop and light-commercial energy profiles when 32.15kWh of storage and 15.36kW continuous output match the measured load. Use interval consumption data where possible and have a qualified designer plan the inverter, protection, conductors and any parallel battery bank.
Can PowerHarp 16 be used for whole-house battery backup?
PowerHarp 16 is designed for residential backup and provides 16.07kWh nominal energy, 7.68kW continuous output and 10.2kW peak output under the stated conditions. Whether it can support the entire home depends on the selected circuits, starting loads, inverter, transfer equipment and required backup duration.
What is the difference between PowerHarp 16 and PowerFable 16?
Both provide approximately 16.07kWh from a 51.2V 314Ah LiFePO4 pack, but their installation formats differ. PowerHarp 16 is an integrated floor-standing indoor cabinet, while PowerFable 16 uses a serviceable 19-inch 6U rack format that can be installed only in its approved rack, stacking or caster configuration.
