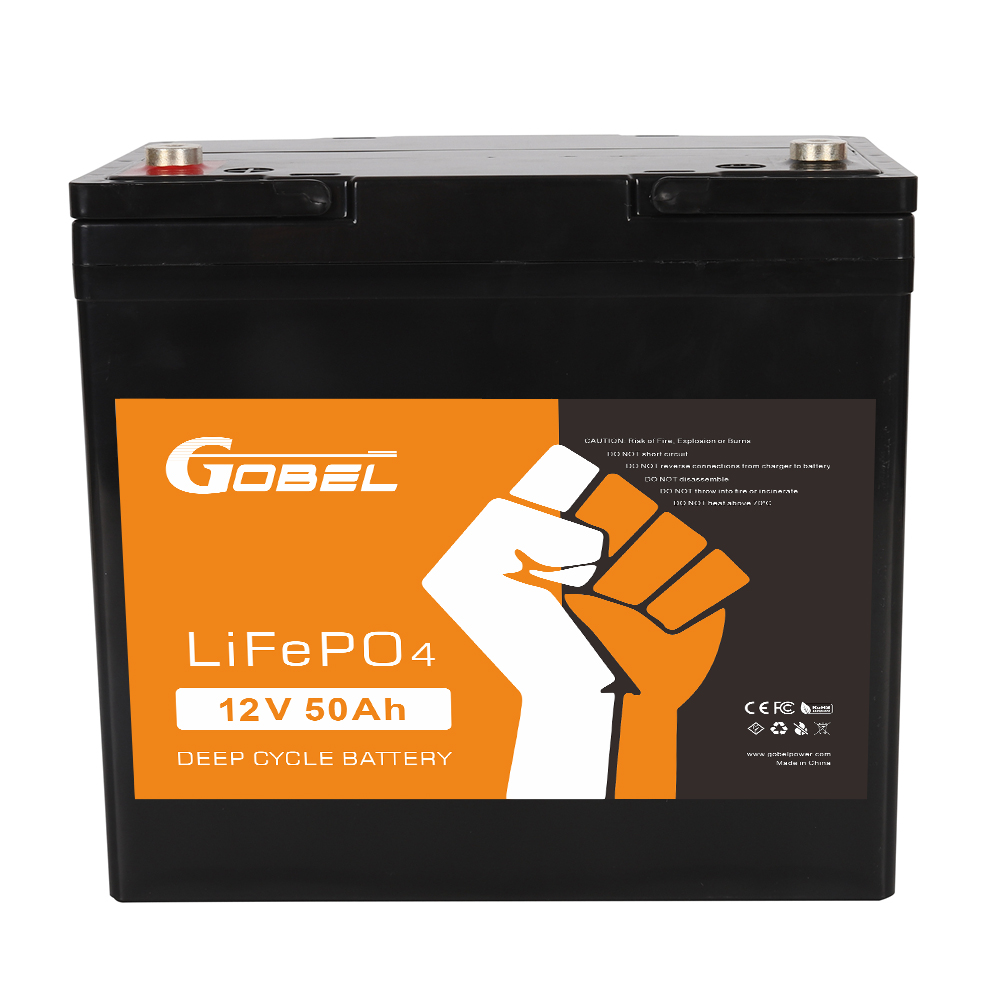

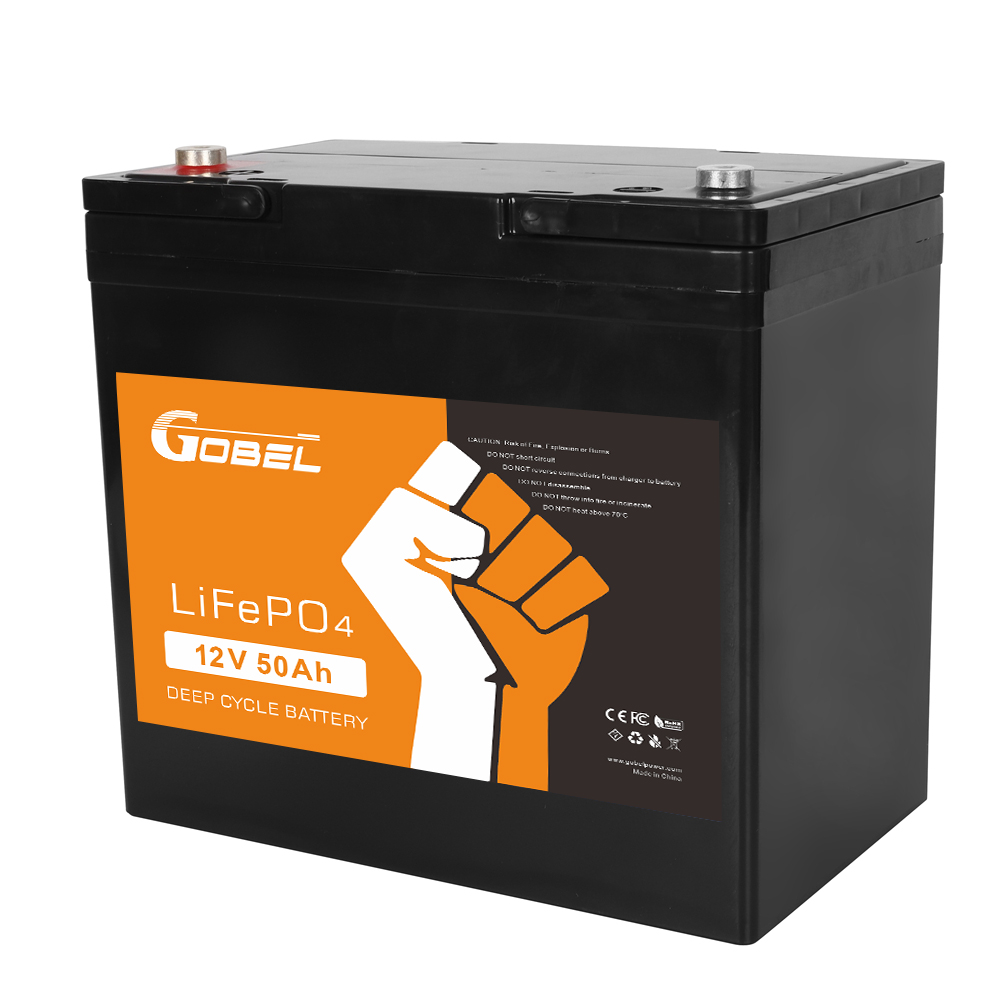

Gobel LFP12.8-50 · 12.8V 50Ah 640Wh Battery
Lightweight 12.8V 50Ah Deep Cycle LiFePO4 Battery Pack
Designed as a direct drop-in replacement for traditional lead-acid batteries. Built with 3.2V 25Ah cells (4S2P) and an integrated 4S 50A BMS, supporting up to 4S4P/4S10P expansion for RV, solar energy storage, marine, and UPS backup applications.
| 640 WhNominal Energy | 12.8V / 50AhVoltage & Capacity | >2000 Cycles@100% DOD (1C) | 6.5 kgUltra Lightweight |
Drop-in Lead-Acid Replacement
60% Lighter Weight & 20x Longer Cycle Life
Weighing only 6.5 kg (about 40% of an equivalent lead-acid battery), the Gobel LFP12.8-50 serves as a seamless plug-and-play upgrade that significantly reduces weight and drastically minimizes total cost of ownership over its service life.
Longer Cycle Life: Offers over 2,000 cycles at 100% DOD (1C discharge) and up to 5 times longer float/calendar life than lead-acid options.
Higher Usable Power: Delivers up to twice the effective power during high discharge rates while maintaining stable voltage capacity.
Ultra-Low Self Discharge: Less than 3% self-discharge per month for reliable standby performance.
Integrated 4S 50A BMS & Superior Chemistry Safety
Utilizing high-safety Lithium Iron Phosphate (LiFePO4) chemistry and a dedicated 4S 50A internal BMS, the battery protects against electrical and thermal risks during heavy operation.
Intelligent BMS Protection: Built-in 4S 50A BMS continuously protects against overcharge, over-discharge, over-current, and short circuits.
High Pulse Output: Supports 50A continuous discharge current and up to 150A peak pulse current (<3 seconds).
Intrinsic Safety: Zero risk of combustion or thermal explosion under severe impacts, short circuits, or overcharging conditions.
Modular Scalability: Up to 4S Series & 10P Parallel Configuration
Engineered with maximum installation flexibility in mind, enabling easy building of higher voltage or higher capacity banks.
Up to 4S Connection: Combine up to 4 units in series to create a 51.2V nominal energy storage bank.
Up to 10P Connection: Connect up to 10 units in parallel to expand capacity up to 500Ah (6.4kWh).
Rugged ABS Casing: Housed in a durable ABS plastic case with standard M6 screw terminals for clean and reliable wiring.
Wide Temperature Adaptability & Versatile Applications
Operates reliably in harsh conditions across a wide discharge temperature range from -20°C to 60°C.
Off-Grid Solar & Wind Storage: Store renewable solar or wind energy with 96%–99% discharge efficiency.
UPS & Telecom Backup: Instant discharge response for critical telecom equipment and medical backup devices.
Electric Mobility & Lighting: Ideal for electric mobility, trolling motors, and emergency illumination setups.
Technical Specifications
| Product Model | Gobel LFP12.8-50 (12.8V 50Ah) |
| Nominal Voltage & Energy | 12.8 V | 640 Wh |
| Nominal Capacity | 50Ah (C5, 25°C) |
| Cell Architecture & Chemistry | 3.2V 25Ah (4S2P) Prismatic LiFePO4 |
| Internal BMS Hardware | 4S 50A BMS |
| Internal Resistance & Efficiency | <150 mΩ | 96%–99% Discharge Efficiency @ 1C |
| Standard Charge Current / Max Charge | 20 A | 50 A Max (14.6V ± 0.2V Charge Voltage) |
| Continuous / Pulse Discharge Current | 50 A Continuous | 150 A Pulse (<3s) | Cut-off: 10V |
| Series & Parallel Limits | Up to 4 Units in Series (4S) / Up to 10 Units in Parallel (10P) |
| Dimensions & Weight | 229 x 138 x 205 mm | 6.5 kg |
| Casing Material & Terminal Type | ABS Plastic Case | M6 Terminal Bolts |
| Operating Temperature | Charge: 0°C to 45°C | Discharge: -20°C to 60°C |
Upgrade Your Power System with Gobel 12.8V 50Ah LiFePO4
Swap out heavy, short-lived lead-acid batteries today. Contact Gobel Power team for wholesale pricing, custom battery configurations, and bulk ordering support.
